#2 Left Rear

REMOVAL PROCEDURE

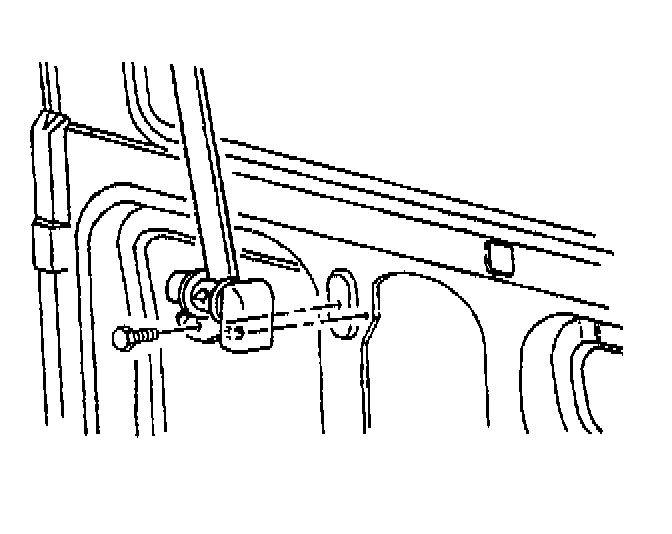

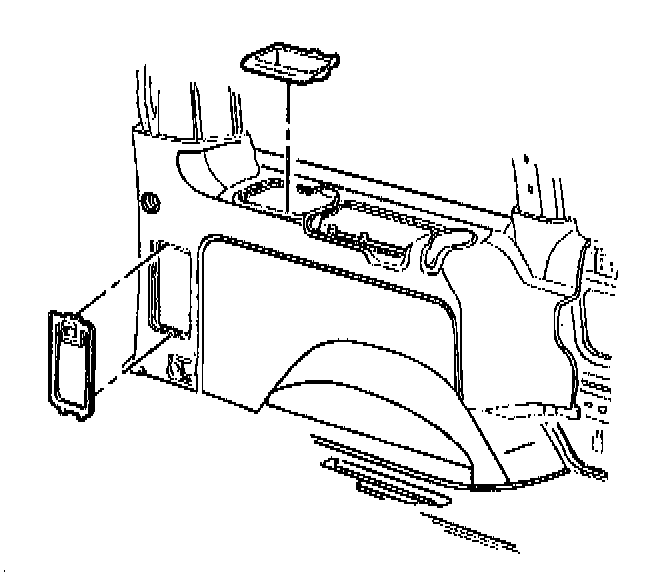

1. Remove the left rear storage trays. Squeeze the storage tray and pull upward to release.





2. Remove the shoulder belt cover to expose the bolt.
3. Remove the shoulder belt retaining bolt from the bracket.





4. Remove the retractor retaining bolt.
5. Remove the retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the retractor to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retractor retaining bolt.

Tighten
Tighten the retractor retaining bolt to 53 N.m (39 lb ft).





3. Install the shoulder belt retaining bolt to the bracket.

Tighten
Tighten the shoulder belt retaining bolt to the bracket to 35 N.m (26 lb ft).

4. Install the retractor retaining bolt.

Tighten
Tighten the retractor retaining bolt to 53 N.m (39 lb ft)






5. Install the storage trays. Squeeze the storage tray together. Press the storage tray into place.
