Knee Bolster Deflector Replacement - Left Side

Knee Bolster Deflector Replacement - Left Side

Removal Procedure

1. Remove the instrument panel extension. Refer toInstrument Panel Extension Replacement (Instrument Panel (IP) - Extension Replacement) .
2. Remove the driver's knee bolster. Refer to Driver Knee Bolster Replacement (Knee Bolster Replacement - Driver) .

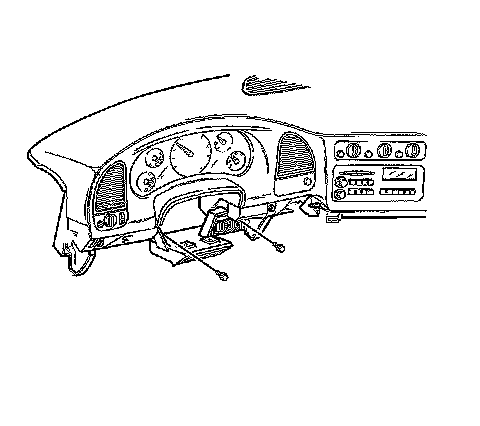

3. Remove the nuts that retain the knee bolster deflector to the instrument panel carrier.
4. Remove the bolts that retain the knee bolster deflector to the instrument panel carrier.




5. Remove the knee bolster deflector from the vehicle.



Installation Procedure





1. Install the knee bolster deflector to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts that retain the knee bolster deflector to the instrument panel carrier.

Tighten the bolts that retain the knee bolster deflector to the instrument panel carrier 10 N.m (89 lb in).

3. Install the bolts that retain the knee bolster deflector to the instrument panel carrier.

Tighten the nuts that retain the knee bolster deflector to the instrument panel carrier to 10 N.m (89 lb in).

4. Install the driver's knee bolster. Refer to Driver Knee Bolster Replacement (Knee Bolster Replacement - Driver) .
