Knee Bolster Deflector Replacement - Left

REMOVAL PROCEDURE
1. Remove the instrument panel extension.
2. Remove the driver's knee bolster.

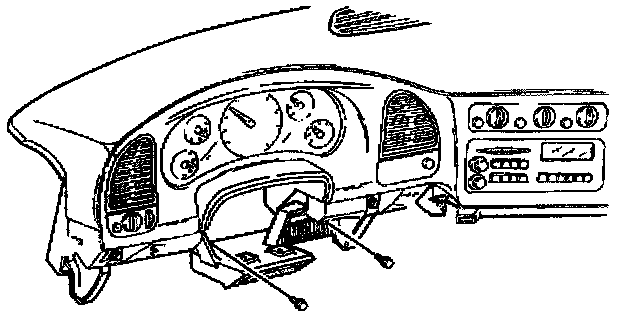

3. Remove the nuts that retain the knee bolster deflector to the instrument panel carrier.
4. Remove the bolts that retain the knee bolster deflector to the instrument panel carrier.
5. Remove the knee bolster deflector from the vehicle.

INSTALLATION PROCEDURE
1. Install the knee bolster deflector to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts that retain the knee bolster deflector to the instrument panel carrier.

Tighten
Tighten the bolts that retain the knee bolster deflector to the instrument panel carrier 10 N.m (89 lb in).

3. Install the bolts that retain the knee bolster deflector to the instrument panel carrier.

Tighten
Tighten the nuts that retain the knee bolster deflector to the instrument panel carrier to 10 N.m (89 lb in).

4. Install the driver's knee bolster.
