Knee Bolster Bracket Replacement - Left

REMOVAL PROCEDURE
1. Remove the driver's knee bolster.

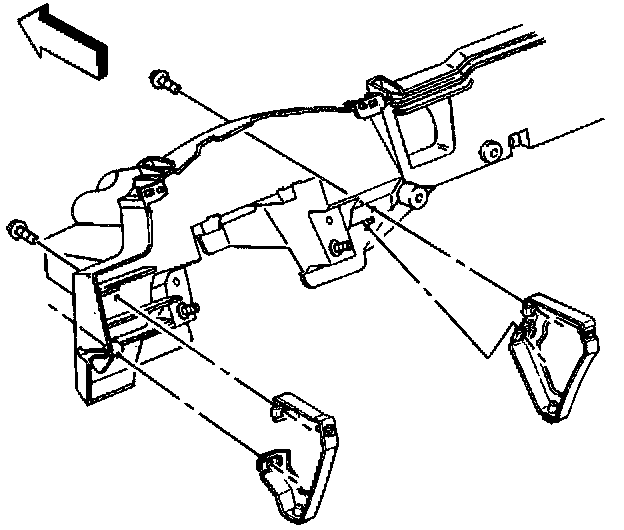

2. Remove the bolts that retain the brackets to the instrument panel trim pad.
3. Roll the instrument panel back, but do not remove the instrument panel. Refer to IF Assembly replacement
4. Remove the bolts that retain the knee bolster brackets to the instrument panel carrier.
5. Remove the knee bolster brackets from the vehicle.

INSTALLATION PROCEDURE
1. Install the knee bolster brackets to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts that retain the brackets to the instrument panel carrier.

Tighten
Tighten the bolts to the brackets to the instrument panel carrier to 10 N.m (89 lb in).

3. Install the instrument panel to the vehicle.
4. Install the bolts that retain the brackets to the instrument panel trim pad.

Tighten
Tighten the bolts that retain the bracket to the instrument panel to 10 N.m (89 lb in).

5. Install the driver's knee bolster.
