Fuel Filler Hose Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Clean all the fuel pipe and hose connections and the surrounding areas before disconnecting in order to avoid possible contamination of the fuel system.
3. Drain the fuel tank to a level below that of the fuel filler tube. Refer to Fuel Tank Draining Procedure.
4. Remove the fuel filler tube.

CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.

5. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
6. Disconnect the fuel fill hose from the fuel fill tube.

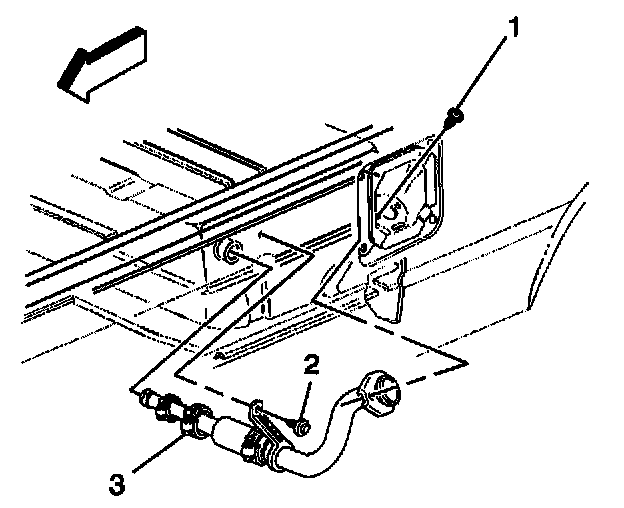

7. Remove the fuel fill hose and the hose clamps (3).
8. Cap the fuel tank opening.

INSTALLATION PROCEDURE

1. Uncap the fuel tank opening.
2. Install the fuel fill hose and the hose clamps (3) on to the filler tube.
3. Install the fuel fill tube.
4. Lower the vehicle.
5. Install the fuel filler cap.
6. Connect the negative battery cable.
