Engine

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Disconnect the [1][2]EVAP line from the EVAP purge solenoid.

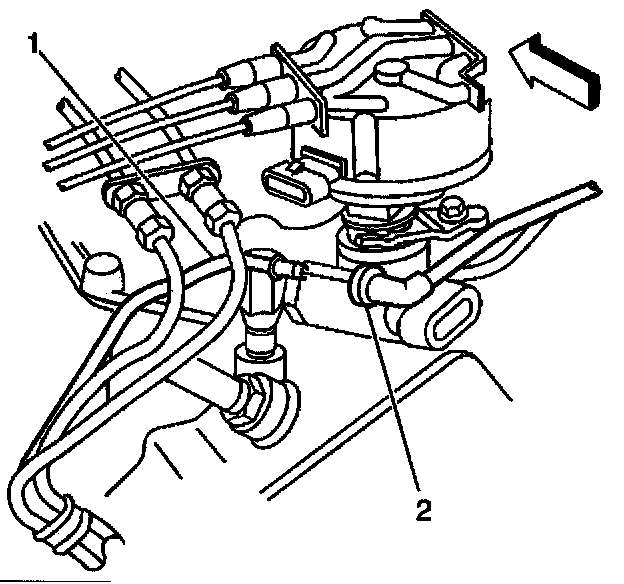

4. Disconnect the [1][2]EVAP (2) line from the EVAP front chassis line (1).

INSTALLATION




1. Connect the [1][2]EVAP line (2) to the EVAP front chassis line (1).




2. Connect the [1][2]EVAP line to the EVAP purge solenoid.
3. Connect the negative battery cable.
4. Install the engine cover.
