Fuel Pump and Sender Assembly and Controls
Fuel Pump and Sender Assembly and Controls

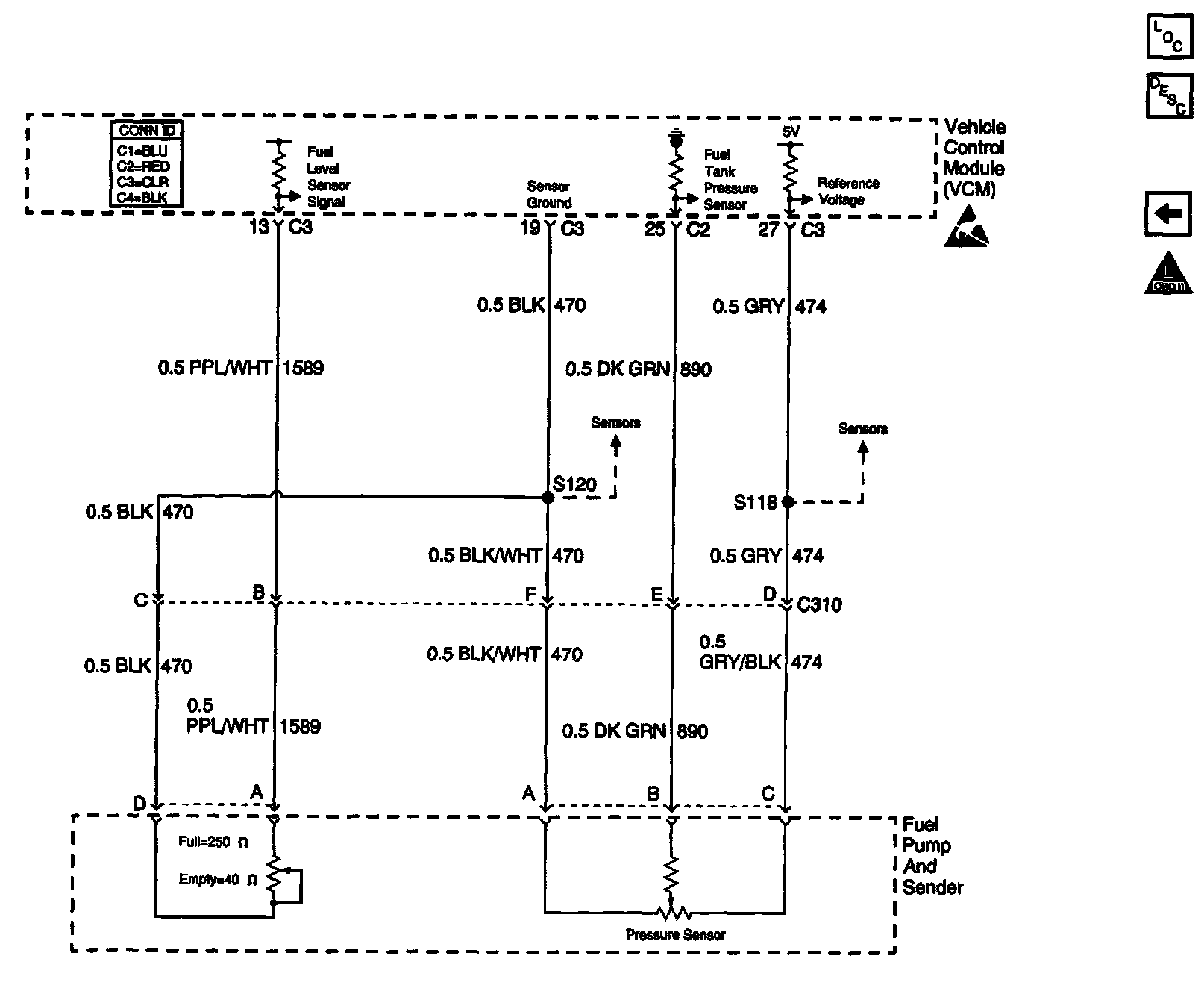

Engine Controls Schematics: Fuel Controls:
