Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
HVAC Controls
HVAC Controls

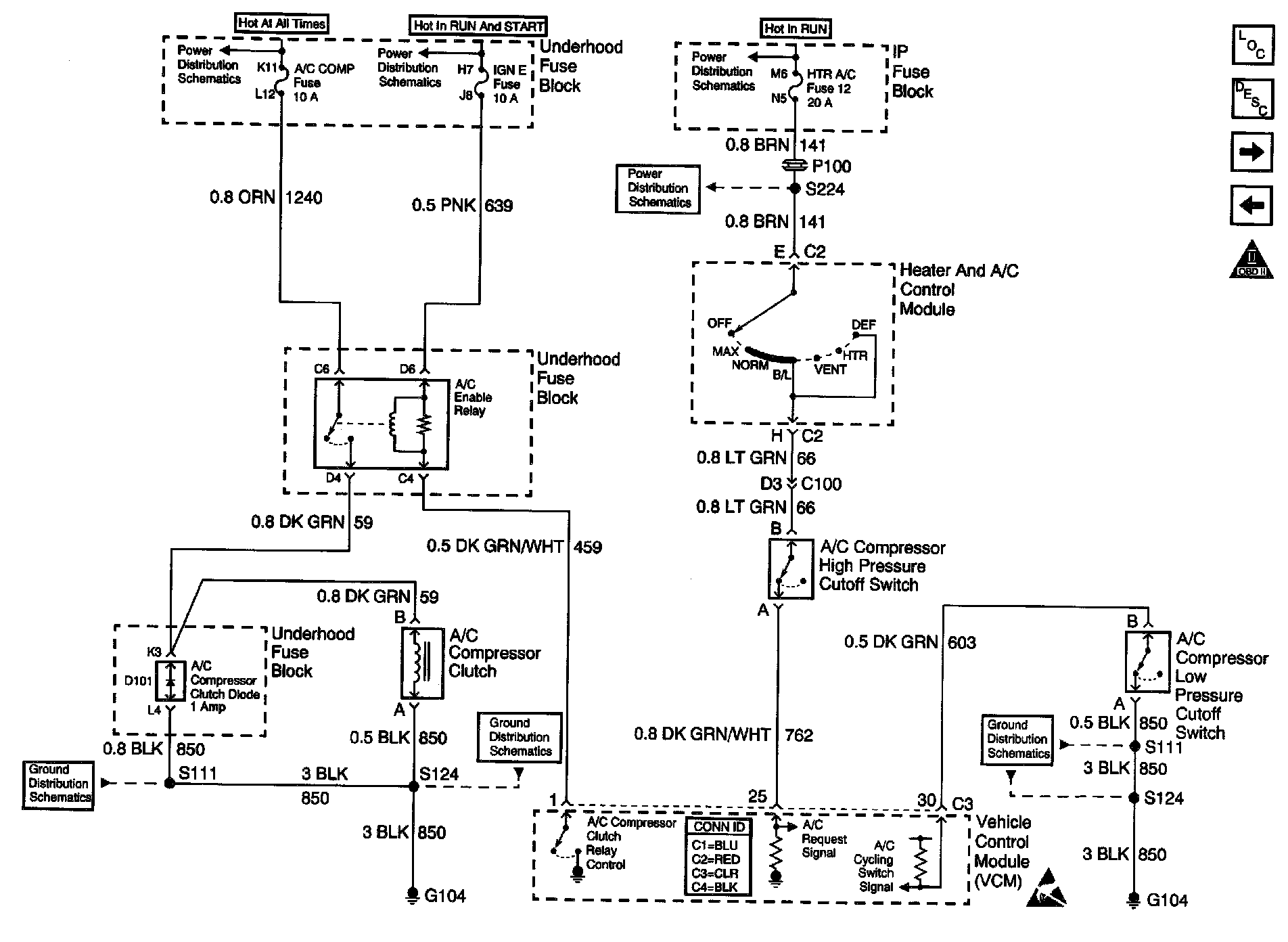

Engine Controls Schematics: A/C Compressor Controls:
