Inadvertent Power Relay
Inadvertent Power Relay

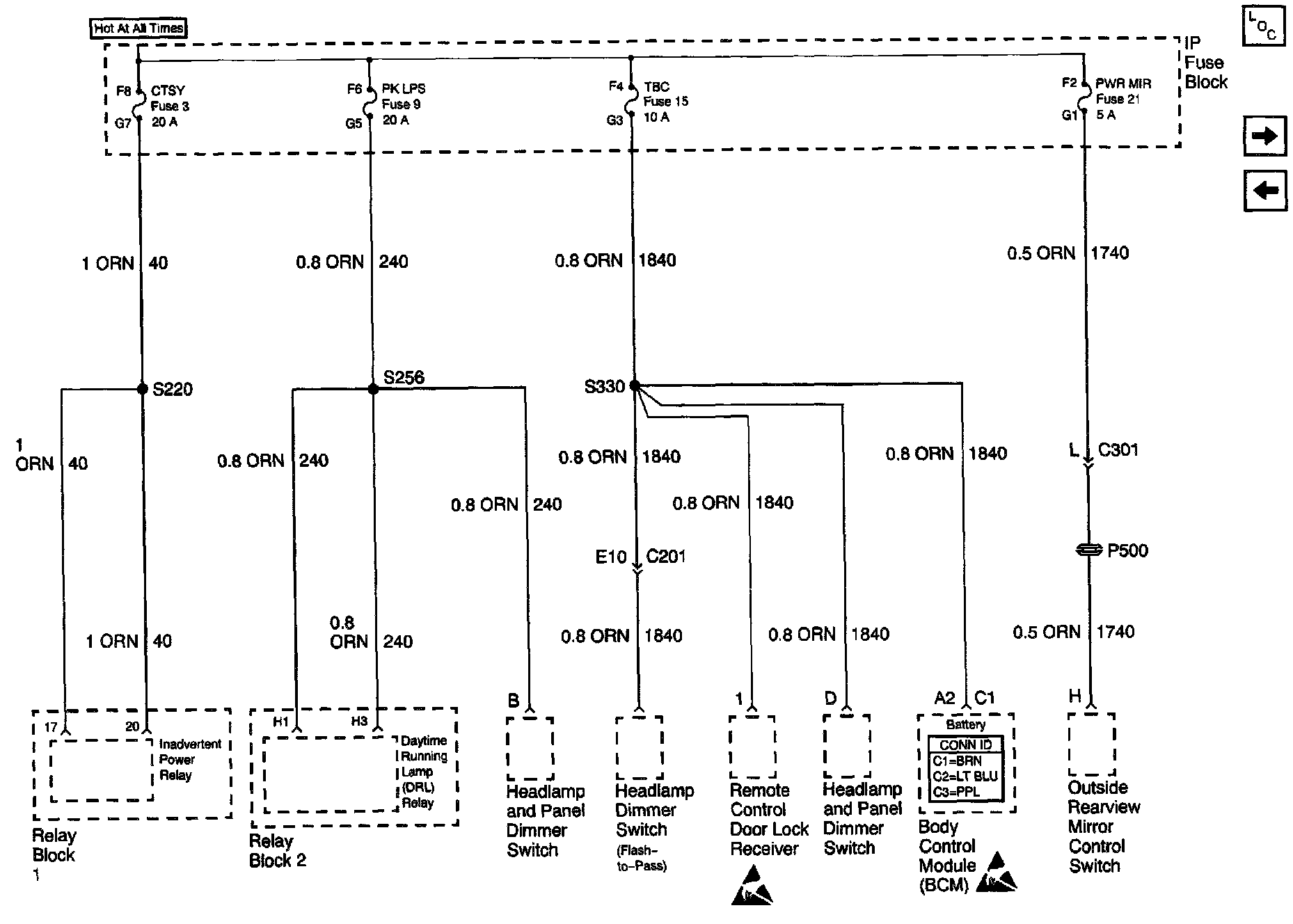

Power Distribution Schematics: CTSY Fuse 3, PK LPS Fuse 9, TBC Fuse 15, and PWR MIR Fuse 21:
