STOP/HAZ Fuse 1 and AUX PWR Fuse 7
STOP/HAZ Fuse 1 and AUX PWR Fuse 7

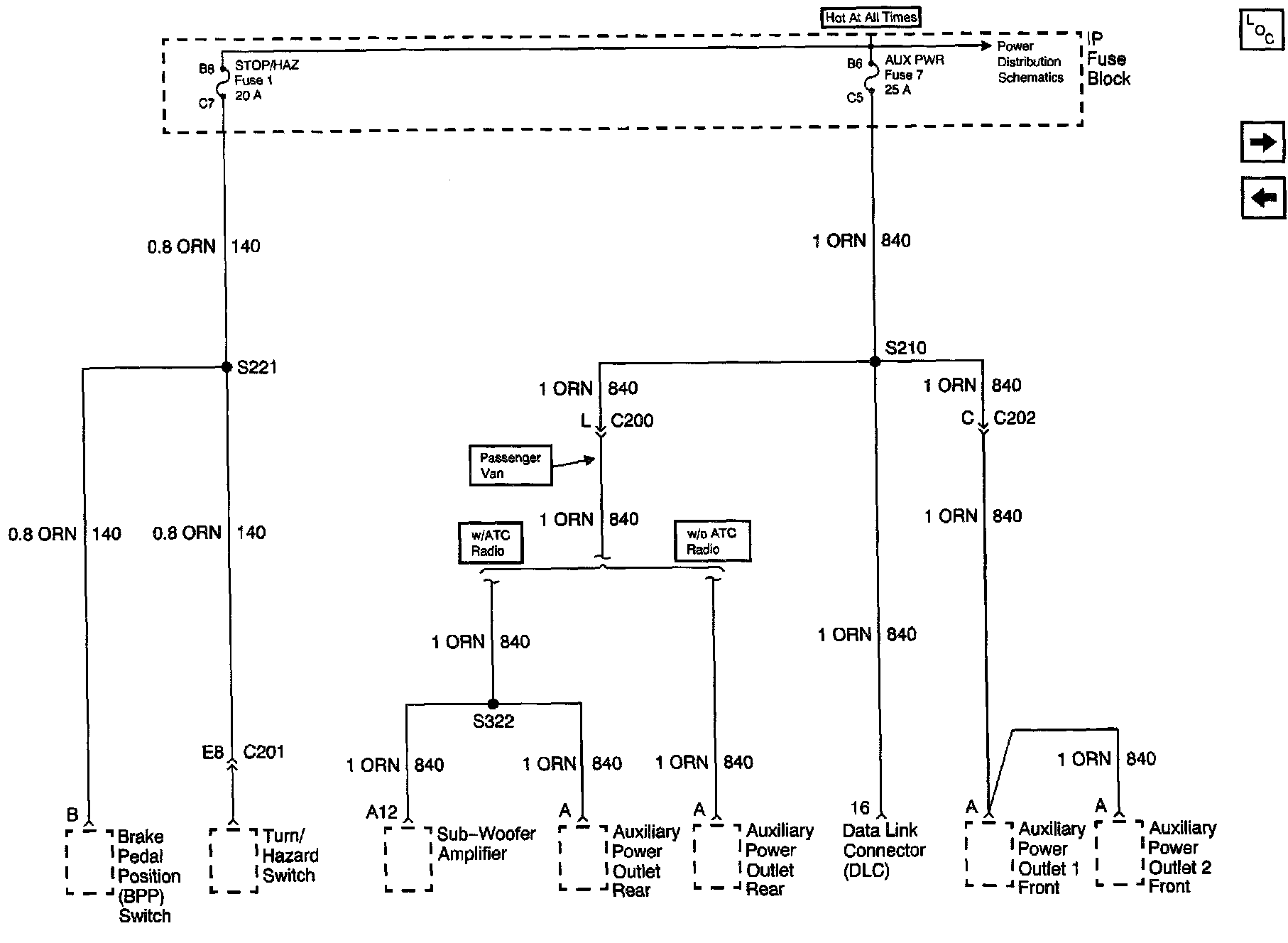

Power Distribution Schematics: STOP/HAZ Fuse 1 and AUX PWR Fuse 7:
