Rear

Tools Required
^ J 6627-A Tie Rod Puller

Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
Allow the axle to hang free.
2. Remove the tire and the wheel. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the brake drum.

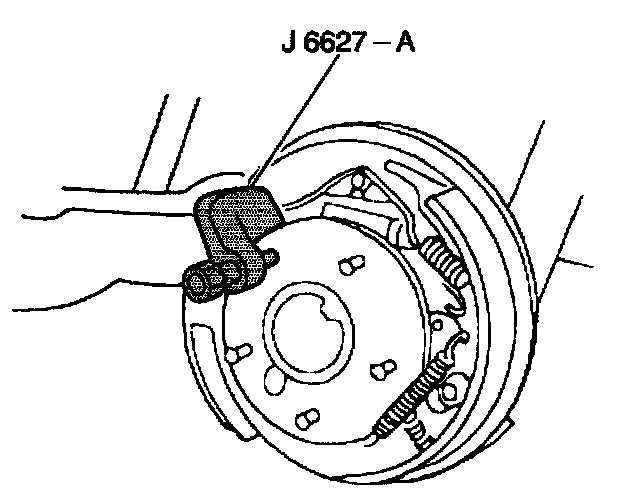

4. Use the J 6627-A in order to remove the stud from the axle flange.

Installation Procedure





1. Start the new stud into the axle flange hole by pressing firmly with your hand.
2. Thread the lug nut on the stud with the flat side of the lug nut to the vehicle.
3. Tighten the lug nut in order to draw the stud into the rear of the flange.
4. Thread the lug nut off the stud.
5. Install the brake drum.
6. Install the tire and the wheel. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
7. Lower the vehicle.
