Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE

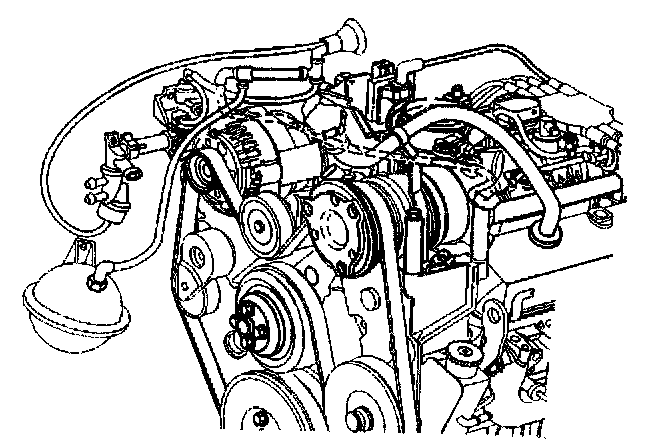

1. Remove the vacuum hose(s).




2. Remove the screws from the vacuum tank.
3. Remove the vacuum tank.

INSTALLATION PROCEDURE

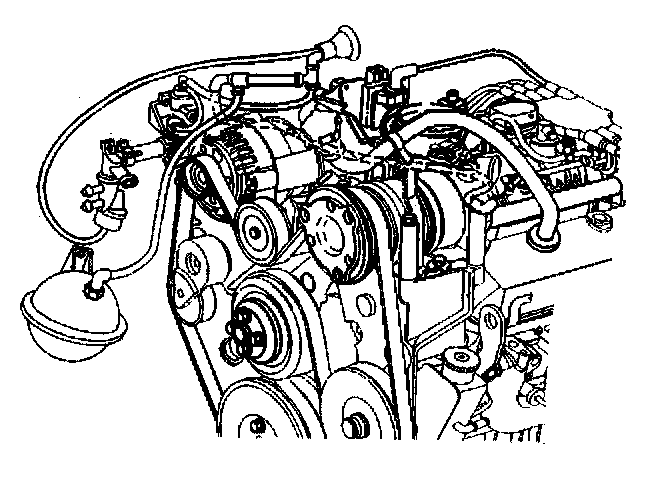

1. Install the vacuum tank.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the vacuum tank.

Tighten
Tighten the vacuum tank screws to 3 N.m (26 lb in).




3. Install the vacuum hose(s).
