Air Outlet Duct Replacement - Right Defogger

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the battery negative cable.

IMPORTANT: Do not remove the instrument panel.

2. Roll the instrument panel down. Refer to IP Carrier Replacement in Instrument Panel and Gauges. Instrument Panel (IP) - Carrier Replacement

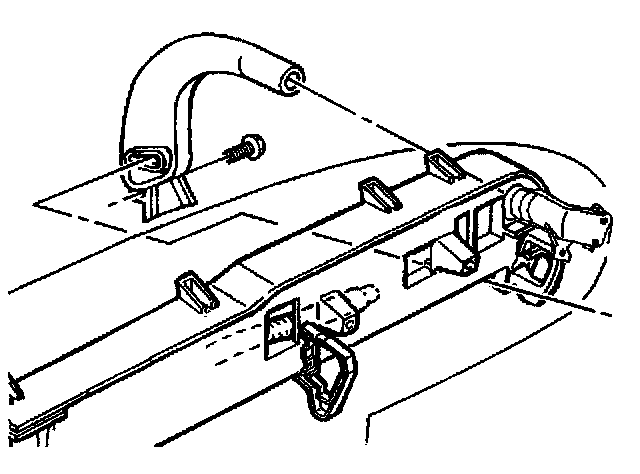

3. Remove the screws that retain the duct.
4. Remove the duct from the instrument panel.

INSTALLATION PROCEDURE




1. Install the duct to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws in order to retain the duct.

Tighten
Tighten the duct retaining screws to 2 N.m (18 lb in).

3. Roll the instrument panel up. Refer to IP Carrier Replacement in Instrument Panel and Gauges. Instrument Panel (IP) - Carrier Replacement

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

4. Connect the battery negative cable.
