Air Outlet Duct Replacement - Left Lap

REMOVAL PROCEDURE




1. Remove the driver's knee bolster.

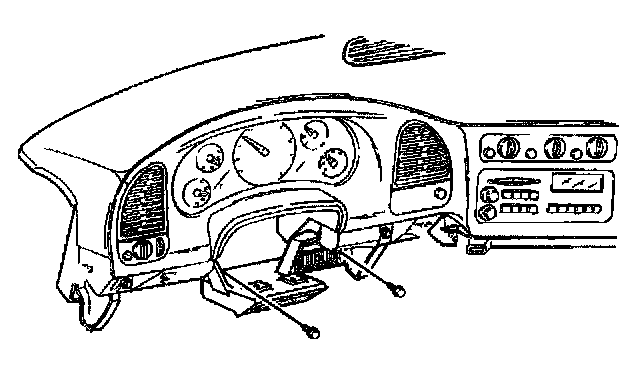

2. Remove the screws that retain the outlet duct.
3. Remove the duct from the air distribution duct.
4. Remove the outlet duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the outlet duct to the vehicle.
2. Install the duct to the air distribution duct.
3. Install the the outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the screws that retain the outlet duct.

Tighten
Tighten the screws that retain the outlet duct to 2 N.m (18 lb in).

5. Install the driver's knee bolster.
