Air Outlet Duct Replacement - Auxiliary

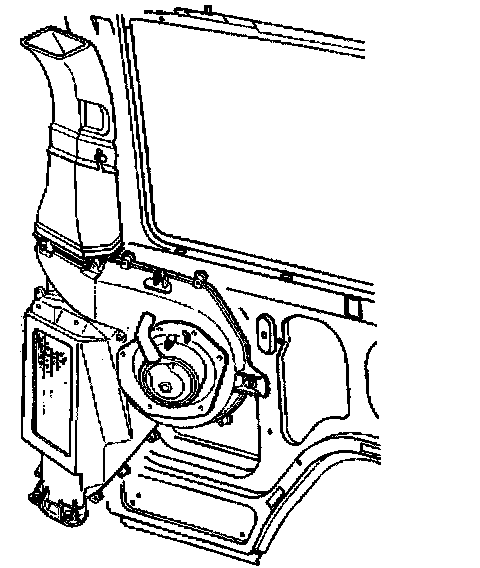

REMOVAL PROCEDURE




1. Remove the left D pillar garnish molding.
2. Release the set screw in the side of the 2 piece duct.
3. Slide the bottom half of the duct up into the top half.
4. Swing the bottom edge of the duct toward the interior of the vehicle.
5. Pull the top edge of the duct clear of the headliner duct.
6. Remove the duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the duct to the vehicle.
2. Push the top edge of the duct into the headliner duct.
3. Swing the bottom edge of the duct into the headliner duct.
4. Swing the bottom edge of the duct into place over the auxiliary evaporator module.
5. Slide the bottom half of the duct down onto the auxiliary evaporator module.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Tighten the set screw on the side of the duct.

Tighten
Tighten the set screw on the side of the duct to 2 N.m (18 lb in).

7. Install the left D pillar garnish molding.
