Fan Shroud Replacement - Lower

Removal Procedure





1. Remove the upper fan shroud. Refer to Fan Shroud Replacement - Upper.
2. Remove the fan. Refer to Fan Replacement.

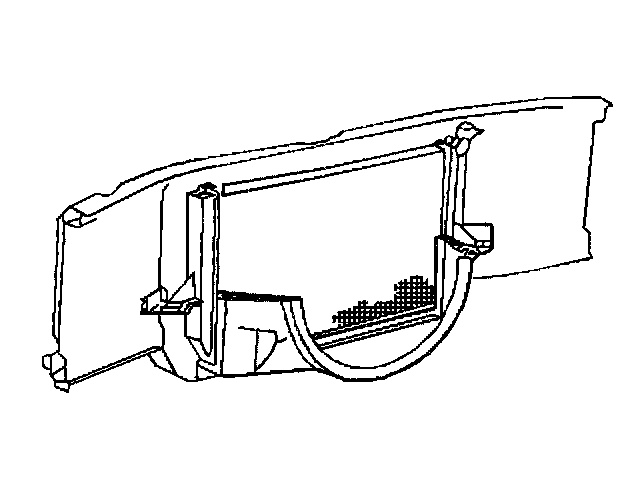

3. Remove the lower fan shroud.

Installation Procedure





1. Install the lower fan shroud.
2. Install the fan. Refer to Fan Replacement.
3. Install the upper fan shroud. Refer to Fan Shroud Replacement - Upper.
