Coolant Reservoir: Service and Repair

Removal Procedure





1. Disconnect the coolant recovery reservoir hose from the from the radiator filler neck.

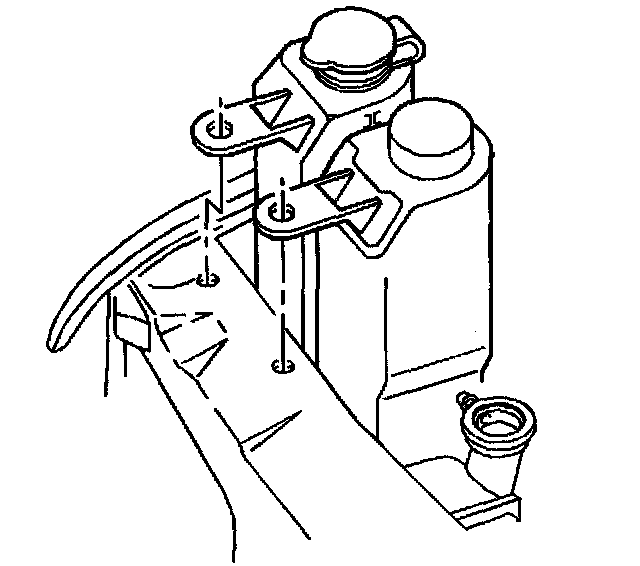

2. Remove the two reservoir retainers.

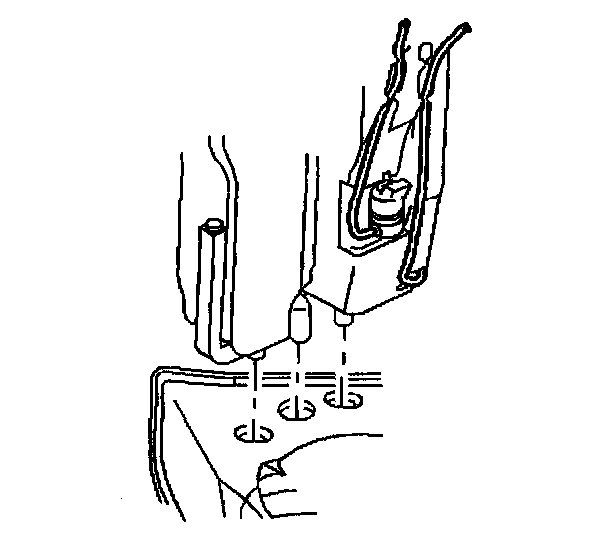

3. Disconnect the electrical connectors from the washer pumps.
4. Disconnect the washer hose(s) from the washer pump(s).





5. Remove the coolant recovery reservoir/windshield washer assembly.
6. Pour out the coolant in the reservoir. Clean the reservoir assembly.

Installation Procedure





1. Connect the electrical connector(s) to the washer pump(s).
2. Connect the washer hose(s) to the washer pump(s).





3. Install the coolant recovery reservoir.





4. Install the retainers.
5. Install the coolant recovery reservoir hose.
6. Refill the coolant recovery reservoir with coolant to the proper level. Use the proper fluid.
