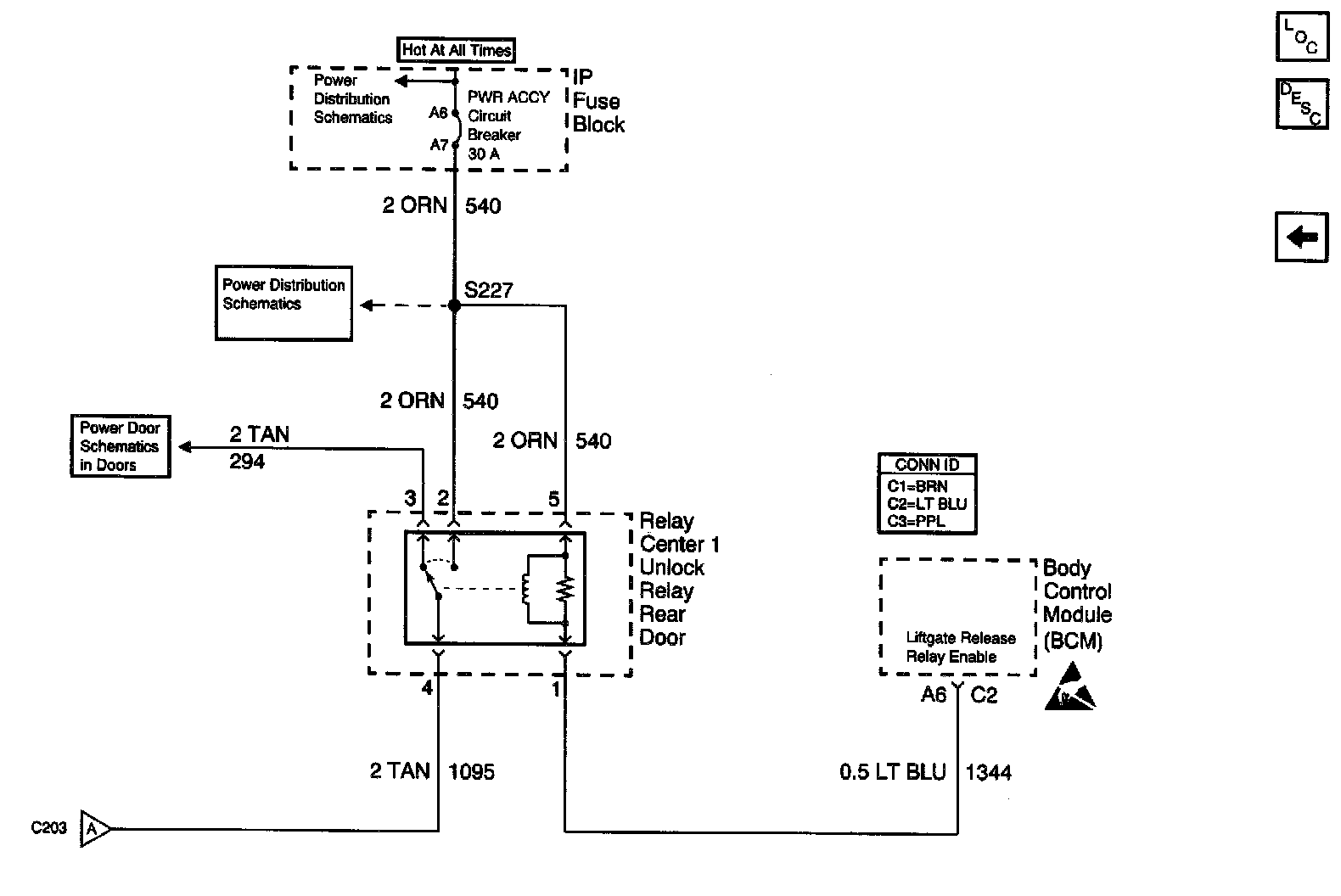

Body Rear End Schematics: Rear Liftgate Window Release (Part 1 of 2):

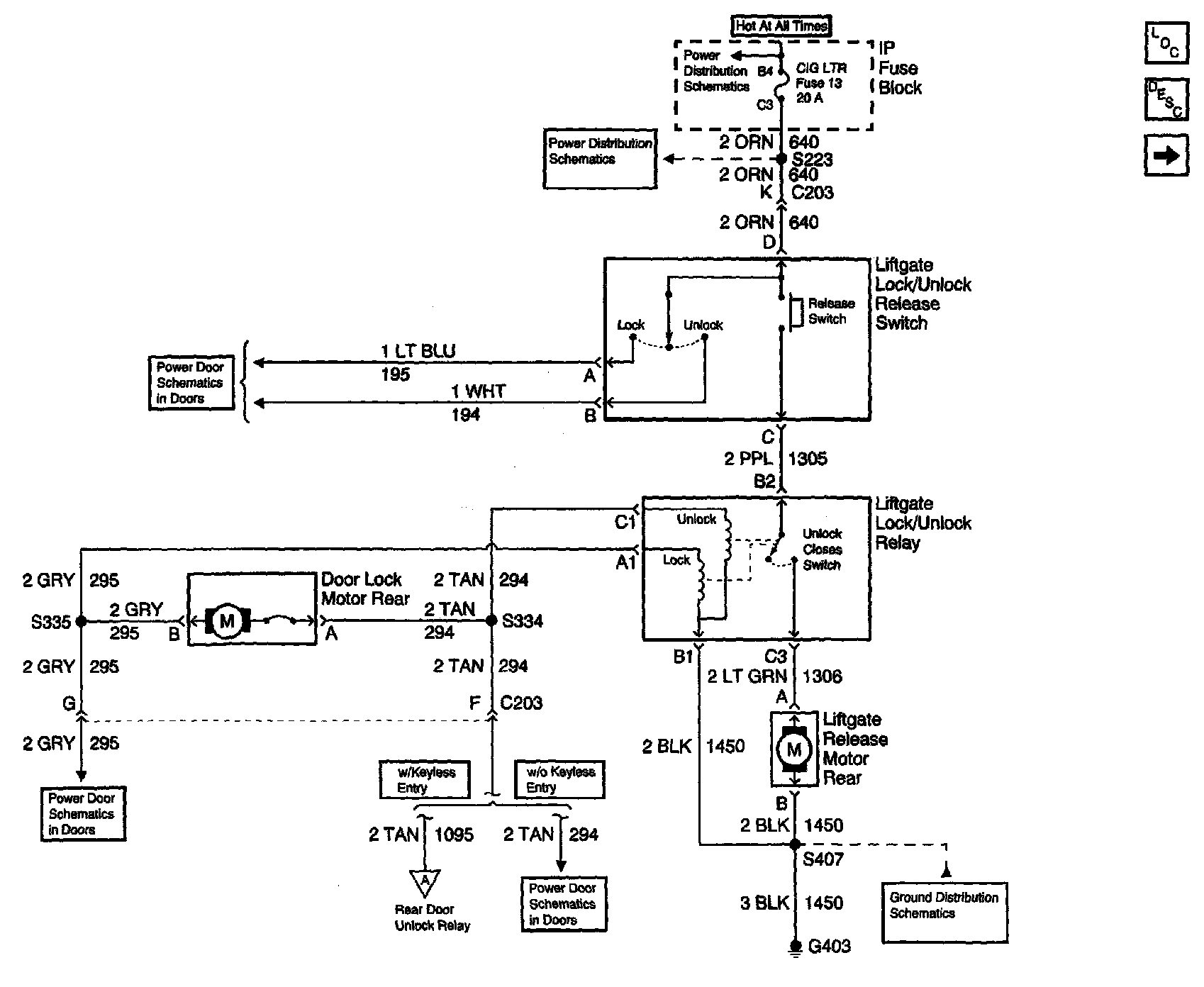

Body Rear End Schematics: Rear Liftgate Window Release (Part 2 of 2):
