Brake Warning Indicator
>>
Brake Pressure Warning and Fluid Level Switch
Brake Pressure Warning and Fluid Level Switch

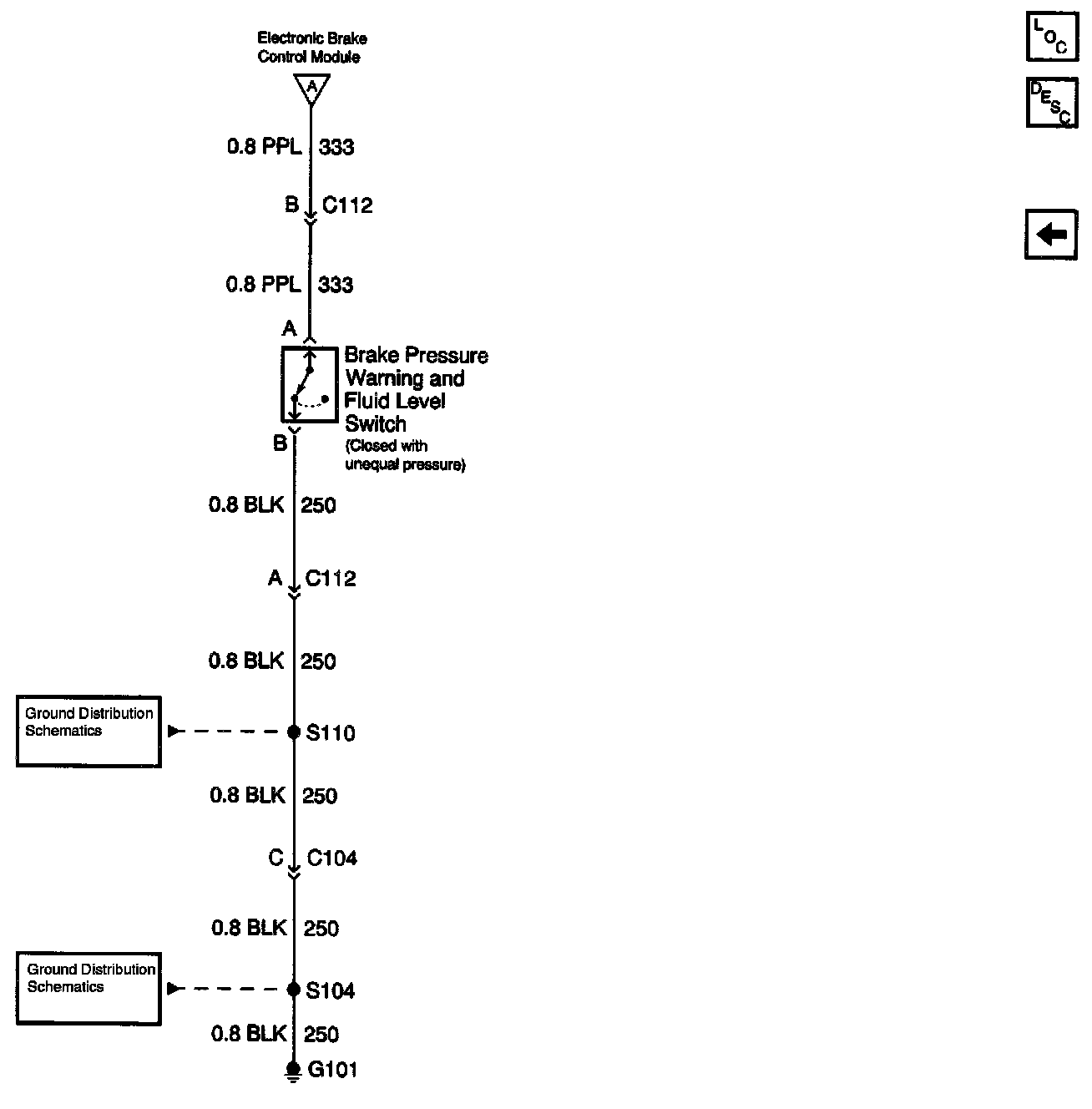

Brake Warning System Schematics: Brake Pressure Warning And Fluid Level Switch:
