Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
EBCM Ground Supply and Controls
EBCM Ground Supply and Controls

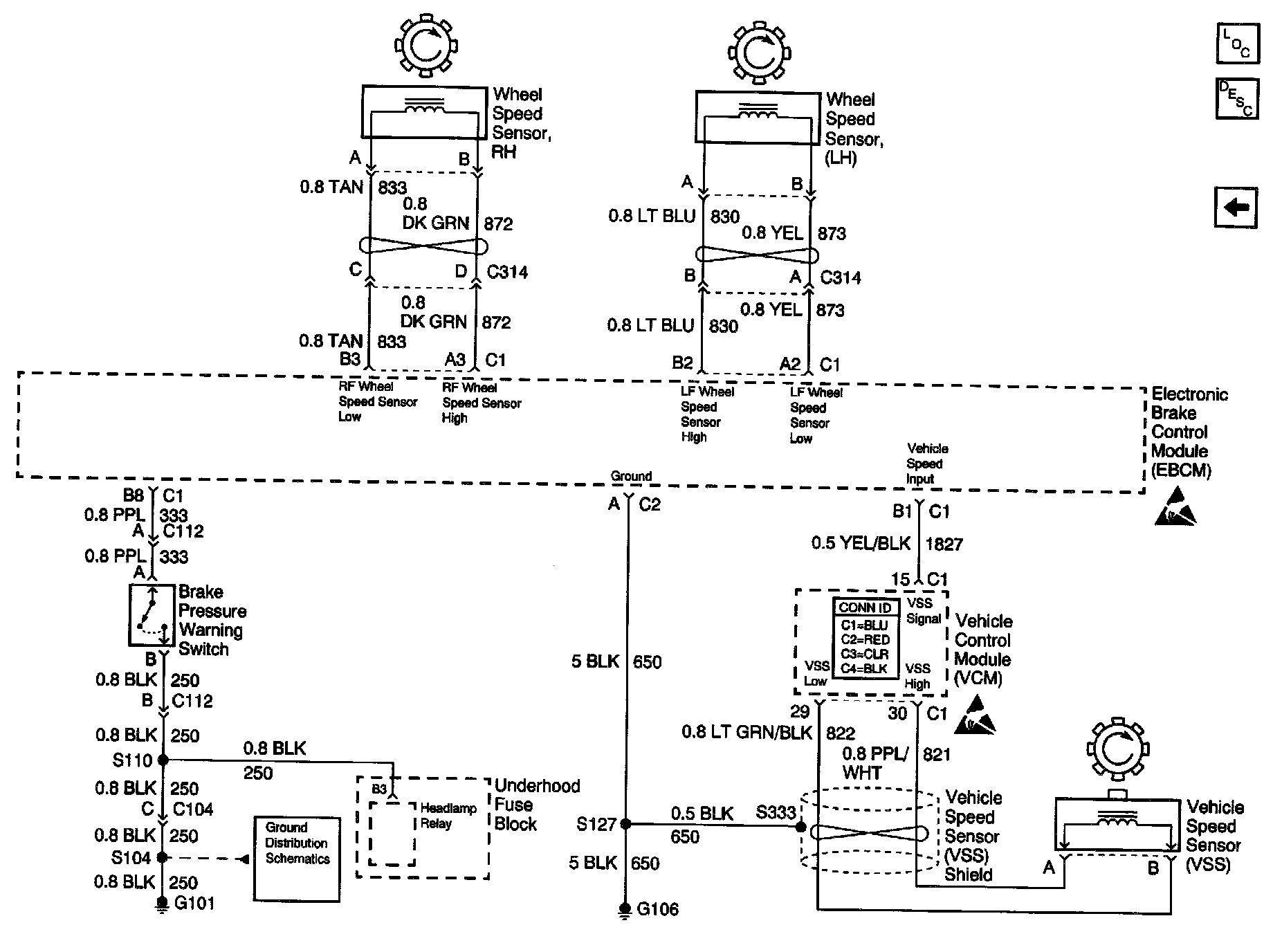

ABS Schematics: EBCM Ground Supply And Controls:
