Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Windshield Washer Pump
>>
Window Washer Pump Motor Rear
Window Washer Pump Motor Rear

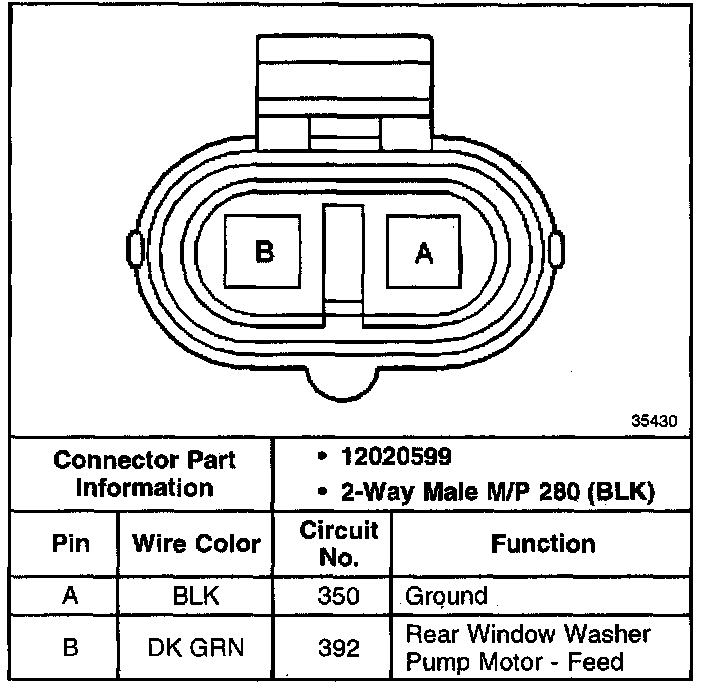

Window Washer Pump Motor Rear:
