Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
System Diagram
>>

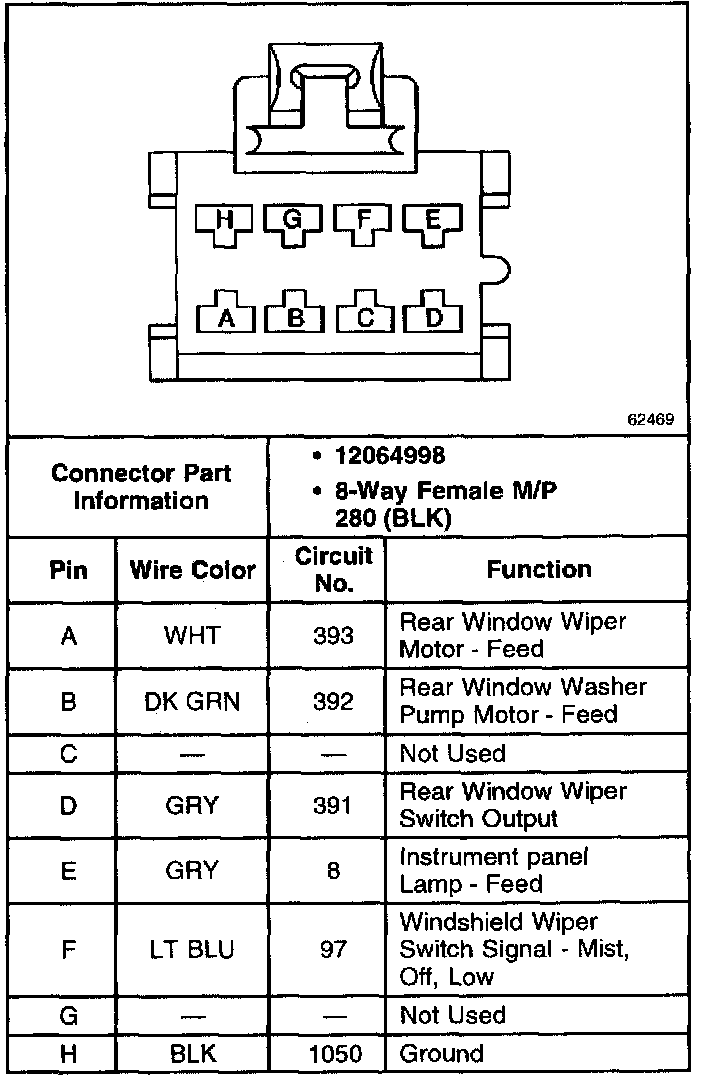

Window Wiper/Washer Switch Rear
Window Wiper/Washer Switch Rear
Window Wiper/Washer Switch Rear:
