Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Auxiliary Power Rear
Auxiliary Power Rear

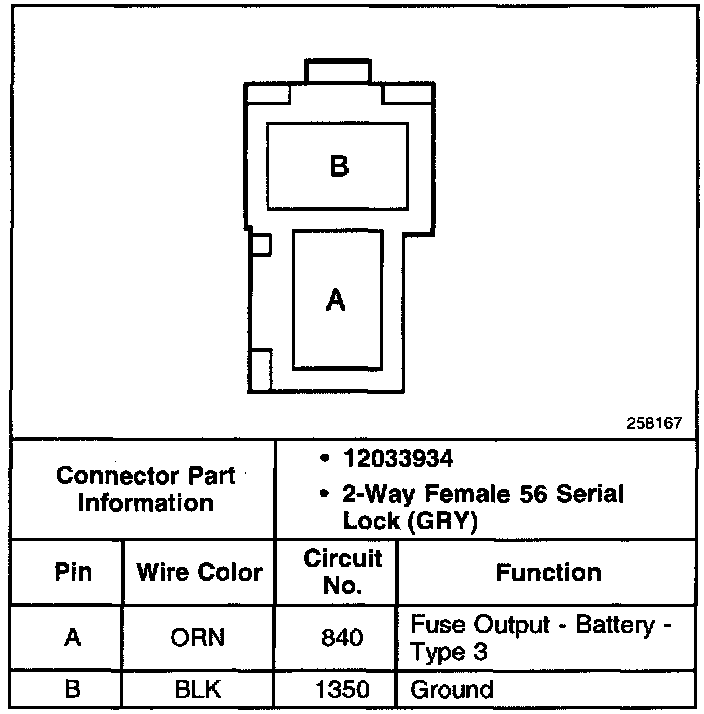

Auxiliary Power Rear:
