Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door
>>
Inline to Sliding Door (C2)
Inline to Sliding Door (C2)

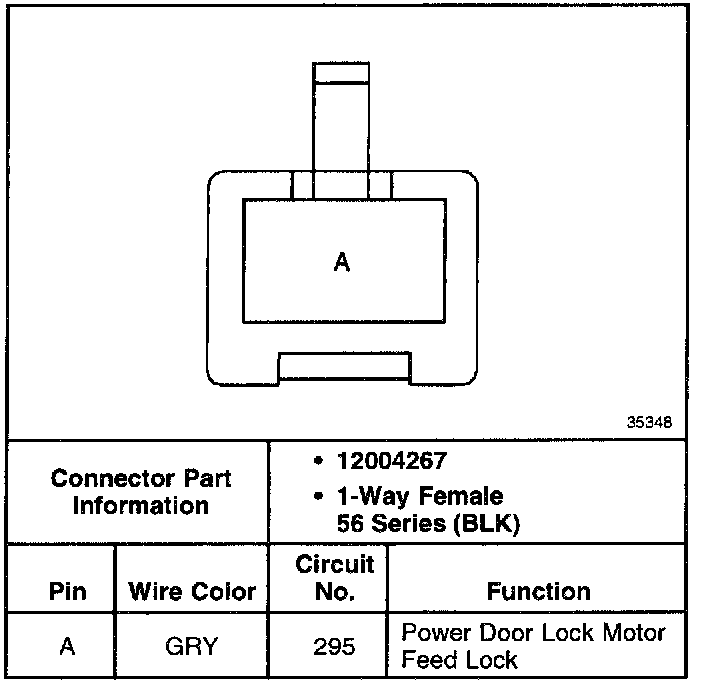

Inline To Sliding Door (C2):
