Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sliding Door
>>

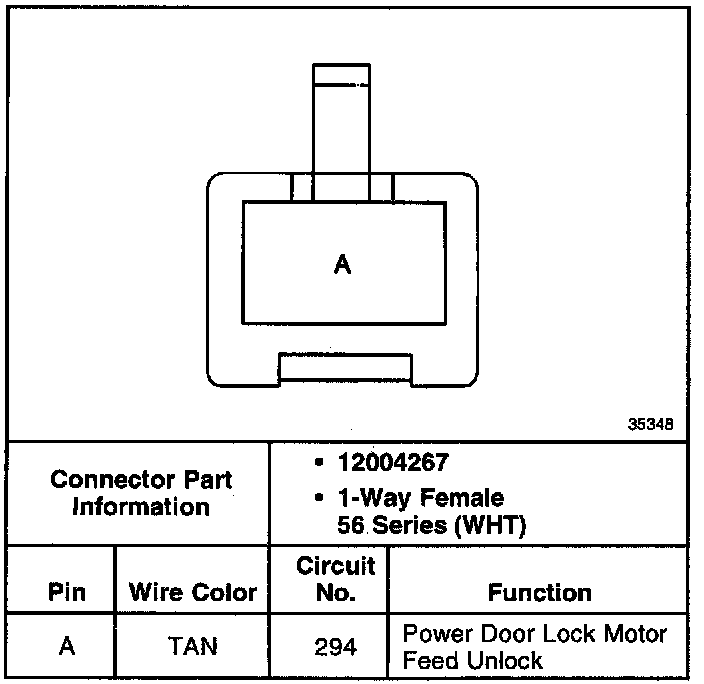

Contact Switch Sliding Door (C1)
Contact Switch Sliding Door (C1)
Contact Switch Sliding Door (C1):
