Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>

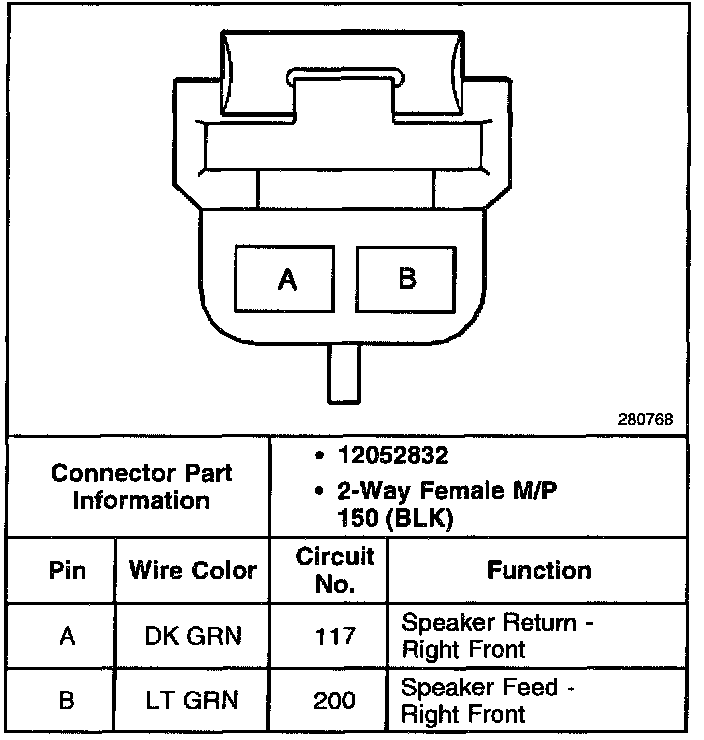

Low Frequency Speaker Right/Passenger Door
Low Frequency Speaker Right/Passenger Door
Low Frequency Speaker Right/Passenger Door:
