Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Low Frequency Speaker Left/Driver Door
Low Frequency Speaker Left/Driver Door

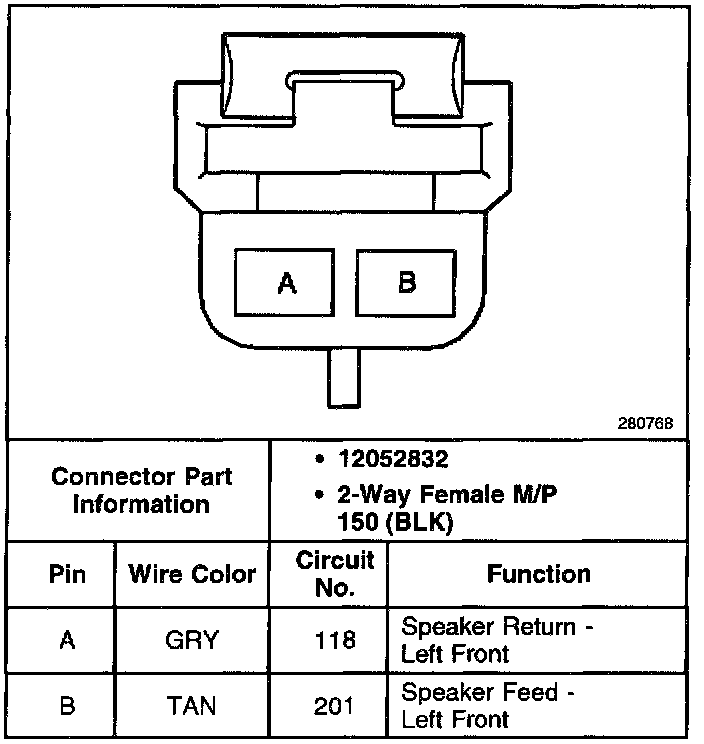

Low Frequency Speaker Left/Driver Door:
