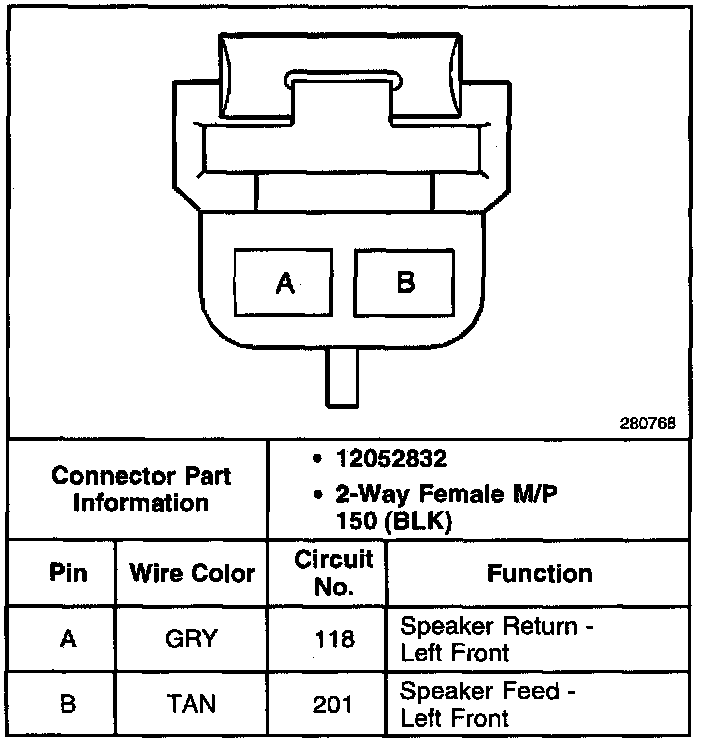

High Frequency Speaker Left/Driver Door
High Frequency Speaker Left/Driver Door
High Frequency Speaker Left/Driver Door:
