Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Turn Signals
>>
System Diagram
>>

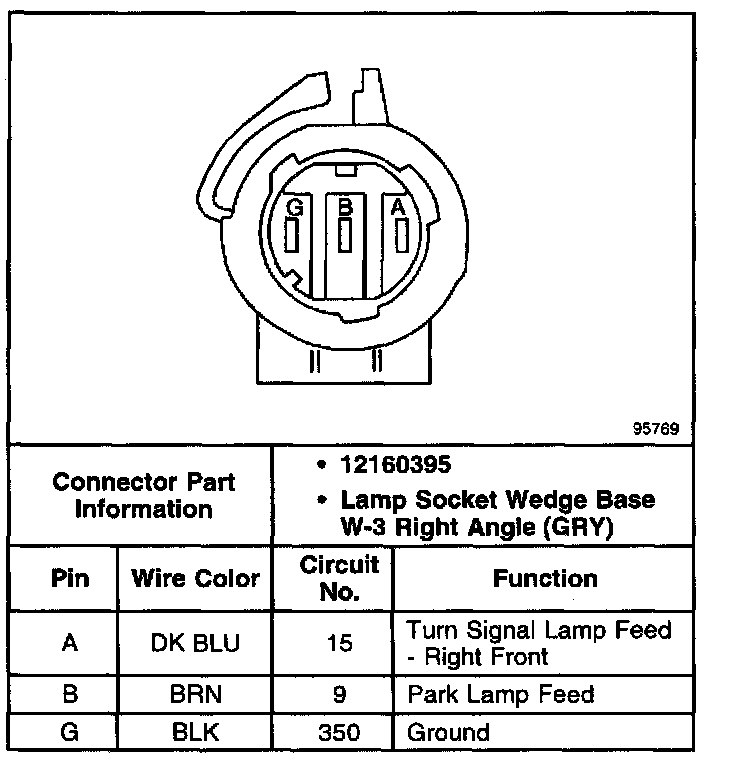

Park/Turn Signal Lamp RH Front
Park/Turn Signal Lamp RH Front
Park/Turn Signal Lamp RH Front:
