Home >> Chevy Truck >> 2000 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Marker Lamp >> Side Marker Lamp RH Front

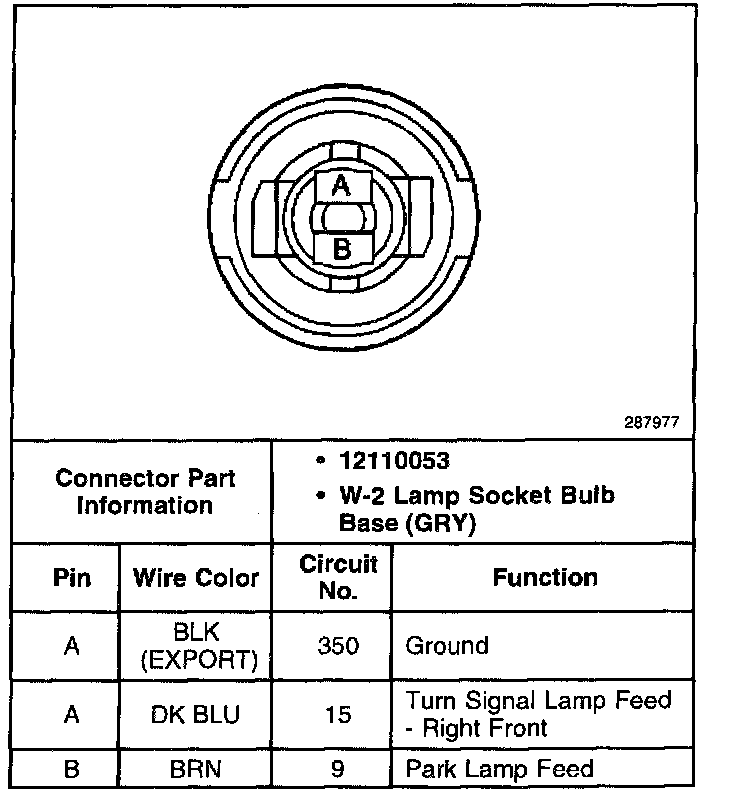

Side Marker Lamp RH Front

Side Marker Lamp RH Front:
