Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Courtesy Lamp
>>
I/P Component Courtesy Lamp
I/P Component Courtesy Lamp

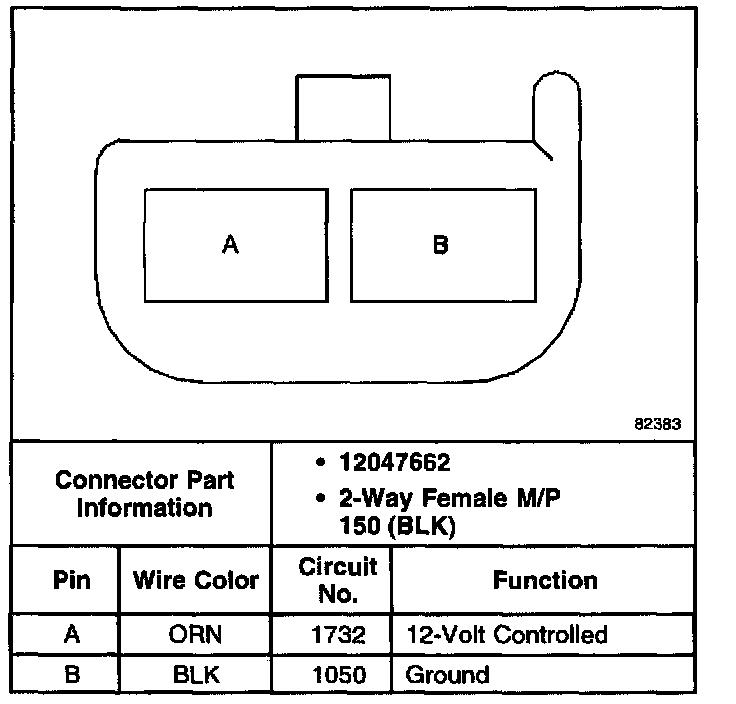

I/P Component Courtesy Lamp:
