Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Backup Lamp
>>
Back-Up Lamp, LH Rear
Back-Up Lamp, LH Rear

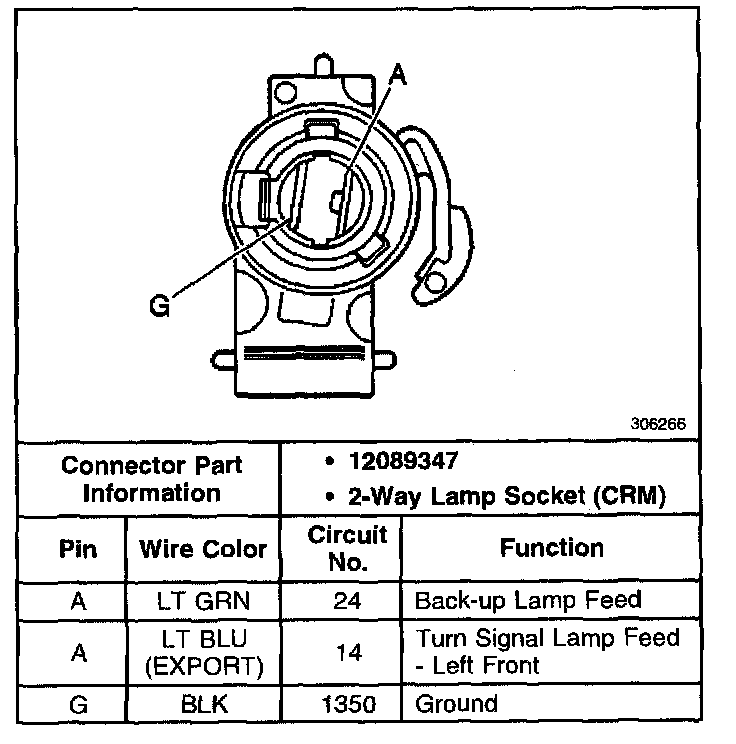

Back-Up Lamp LH Rear:
