Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>

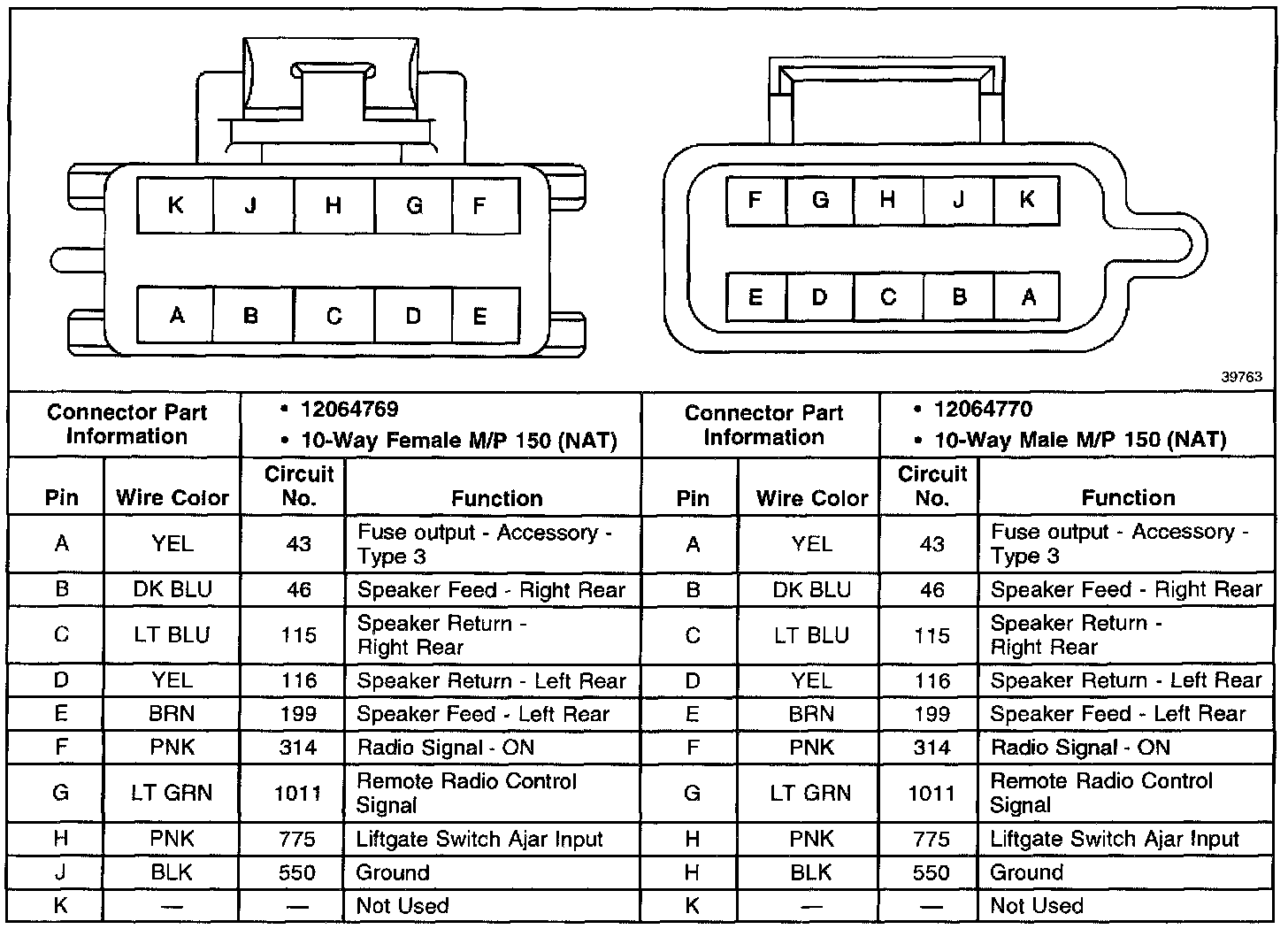

C300 (I/P to Main Body)
C300 (I/P to Main Body)
C300 (I/P to Main Body):
