C210 (Upfitter to Convenience Center)
C210 (Upfitter to Convenience Center)

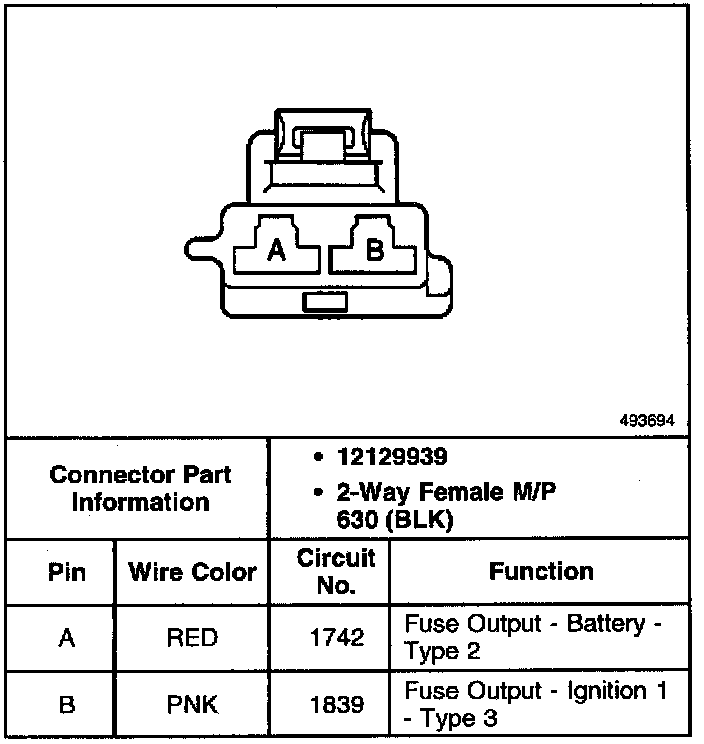

C210 (Upfitter To Convenience Center):
