Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>

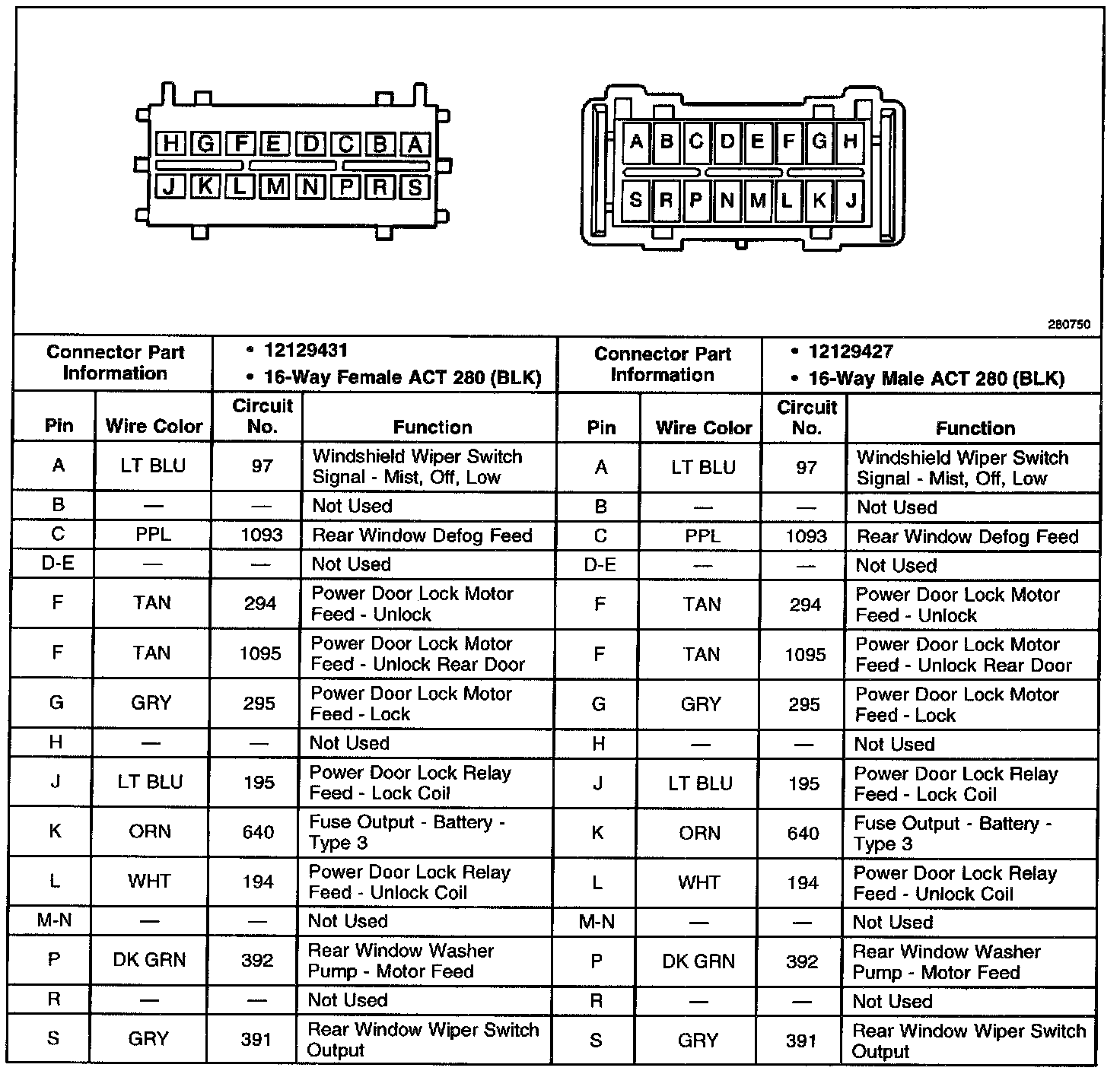

C203 (I/P to Liftgate)
C203 (I/P to Liftgate)
C203 (I/P to Liftgate):
