Home >> Chevy Truck >> 2000 >> Astro Van L AWD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blower Motor >> Heater Blower Motor Rear (C1)

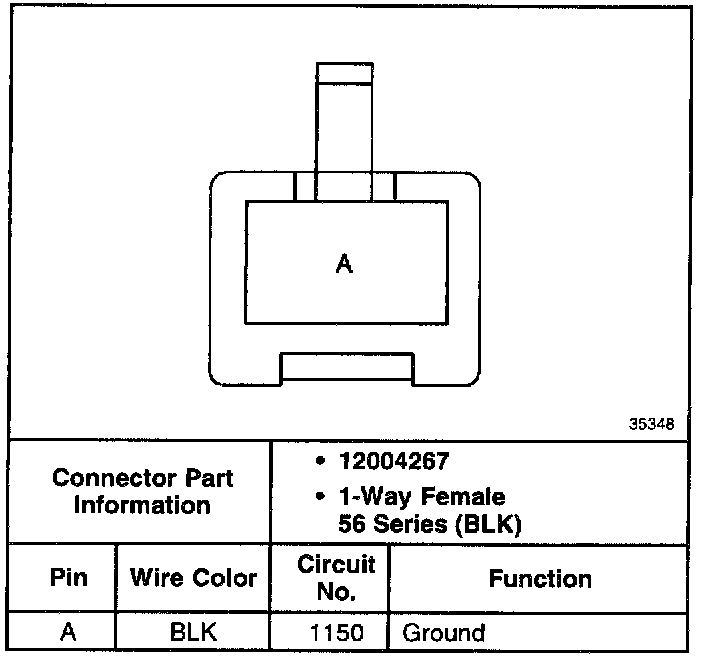

Heater Blower Motor Rear (C1)

Heater Blower Motor Rear (C1):
