Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Solenoid, A/T
>>

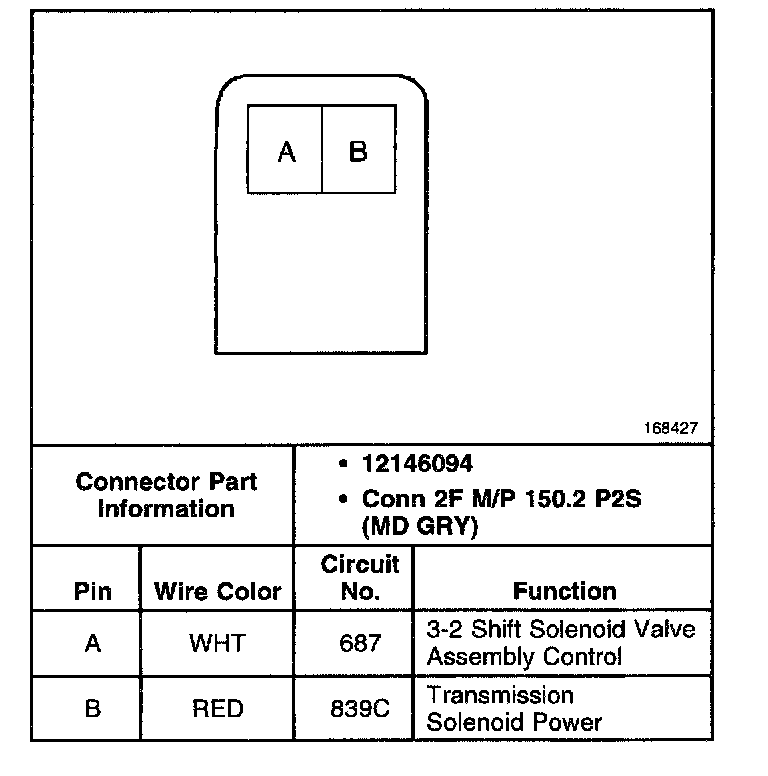

3-2 Shift Solenoid (SS) Valve Assembly Connector
3-2 Shift Solenoid (SS) Valve Assembly Connector
