Park Brake Cable Replacement-Front

Removal Procedure
1. Raise the vehicle.
2. Loosen the equalizer.





3. Disconnect the front cable from the connector at the left rear cable.
4. Lower the vehicle.

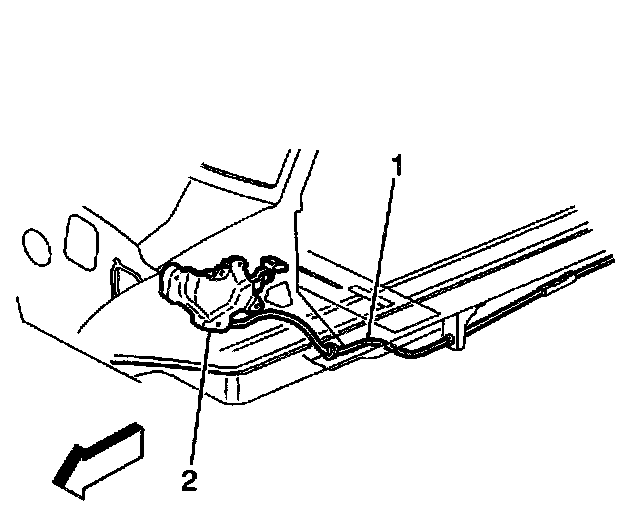

5. Remove the release cable (1) from the lever assembly (2).
6. Remove the cowl side panel trim.
7. Remove the lever assembly. Refer to Park Brake Lever Replacement.





8. Remove the step trim plate. Lift the rocker panel trim and peel back the carpet to expose the park brake cable grommet (4).
9. Remove the front cable (3). Unclip the cable and pull through the body.

Installation Procedure





1. Install the front cable.
- Secure the grommet (4) to the body.
- Clip the cable at the kick panel.





2. Connect the cable (1) to the lever assembly (2).
3. Install the lever assembly. Refer to Park Brake Lever Replacement
4. Install the cowl side panel.
5. Install the step trim plate.
6. Connect the release cable to the lever assembly.
7. Raise the vehicle.





8. Connect the cable to the connector at the left rear cable.
9. Lower the vehicle.
10. Check the adjustment.
