Brake Pedal Assy: Service and Repair

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the battery negative cable.

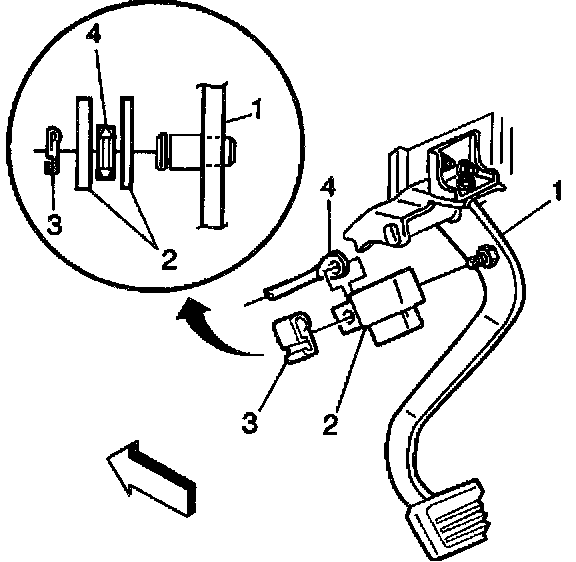

2. Remove the booster pushrod (3) and Stoplamp switch (2) from brake pedal (1). Refer to Stoplamp Switch Replacement.
3. Remove the bolt from the top of the brake pedal (1) at the mounting bracket.
4. Remove the brake pedal pivot bolt.
5. Remove the brake pedal (1), spacers and bushings from the vehicle.

Installation Procedure





1. Install the brake pedal (1) to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the through bolt, spacers and bushings to the vehicle.
- Tighten the nut to 45 Nm (33 ft. lbs.).
3. Install the brake pedal mounting bracket bolt.
- Tighten the brake pedal mounting bracket bolt to 35 Nm (26 ft. lbs.)

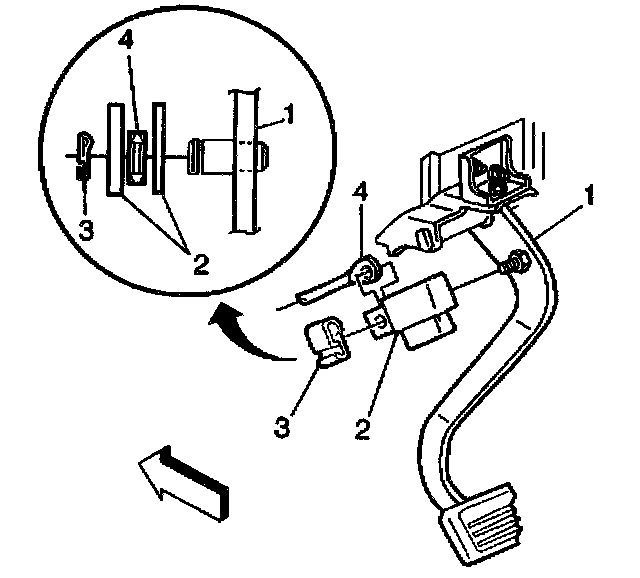

4. Install the booster pushrod (3) and the Stoplamp switch (2) to the brake pedal (1). Refer to Stoplamp Switch Replacement.
5. Connect the battery negative cable.
