Seat Back Recliner Handle Replacement - Front

REMOVAL PROCEDURE

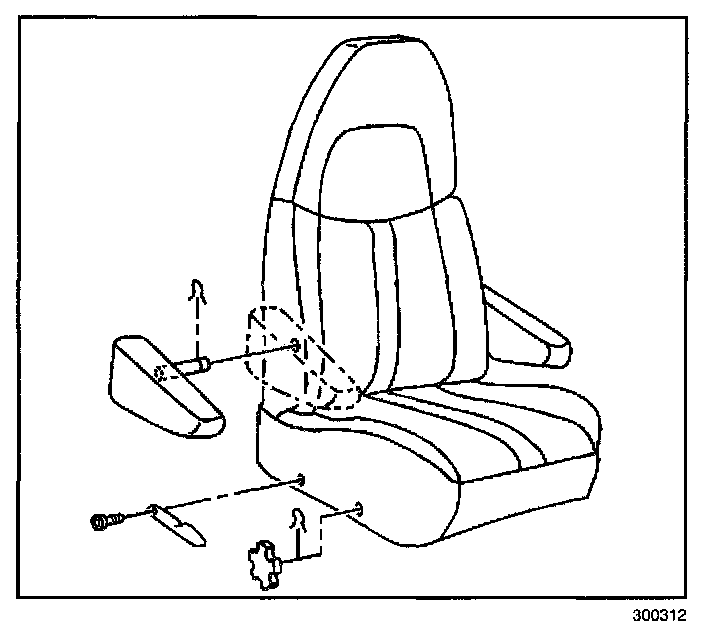

1. Remove the screw that retains the seat back recliner lever to the seat back recliner.
2. Remove the seat back recliner lever from the seat back recliner.

INSTALLATION PROCEDURE

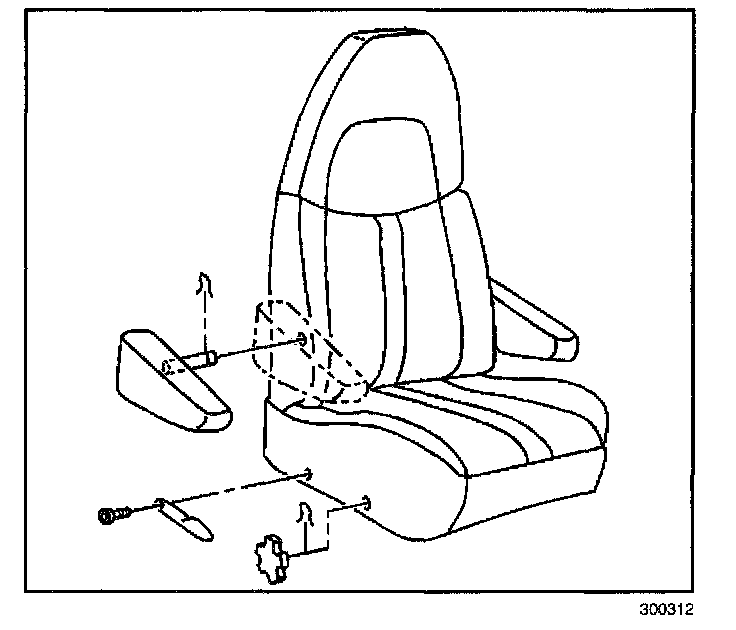

1. Install the seat back recliner lever to the seat back recliner.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screw that retains the seat back recliner lever.

Tighten
Tighten the screw that retain the seat back recliner lever to 2 N.m (18 lb in).
