Fuel Door: Service and Repair

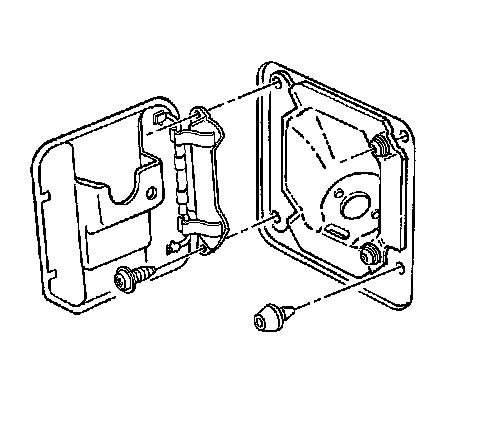

Fuel Tank Filler Door Replacement

Removal Procedure

1. Remove the screws that retain the fuel filler door.




2. Remove the fuel filler door.



Installation Procedure





1. Install the fuel filler door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws that retain the fuel filler door.

Tighten the screws that retain the fuel filler door to 2 N.m (18 lb in).
