Speaker Replacement - Rear Pillar

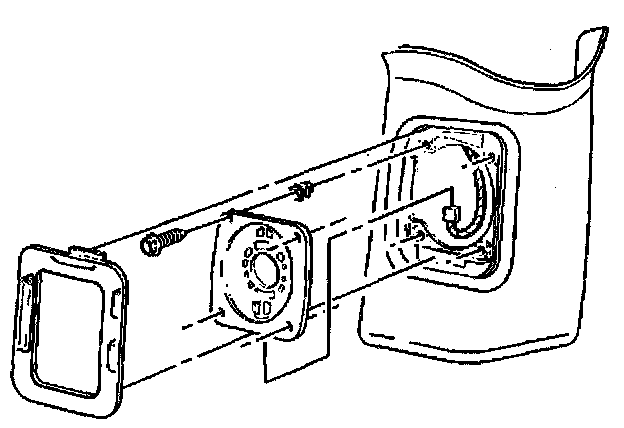

REMOVAL PROCEDURE
1. Gently pry the rear speaker grille from the trim panel using a suitable flat-bladed tool.
2. Remove the speaker mounting screws.
3. Remove the rear speaker from the panel.
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.
2. Install the rear speaker to the trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the speaker mounting screws.

Tighten
Tighten the speaker mounting screws to 2 N.m (18 lb in).

4. Verify component operation.
5. Install the rear speaker grille to the trim panel.
