Speaker Replacement - Front Upper

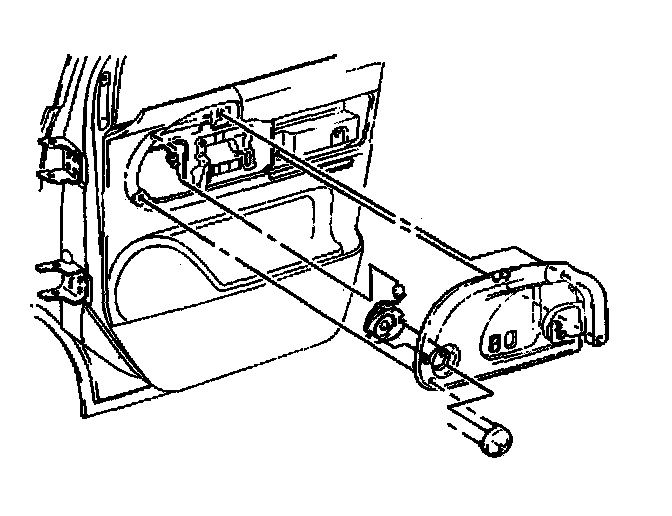

REMOVAL PROCEDURE
1. Remove the assist handle from the door.
2. Remove the retaining screw from the trim plate.
3. Remove the escutcheon from the trim plate.
4. Swing the plate down.
5. Remove the tweeter speaker from the trim plate by rotating in order to clear the mounting tabs.
6. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connector.
2. Install the tweeter speaker to the trim plate by rotating in order to lock the mounting tabs.
3. Verify component operation.
4. Swing the trim plate up.
5. Install the escutcheon to the trim plate.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the retaining screw to the trim plate.

Tighten
Tighten the trim plate screw to 2 N.m (18 lb in).

7. Install the assist handle to the door.
