Transmission Pressure Test Port: Service and Repair

REMOVAL PROCEDURE





1. Remove the throttle body air inlet duct.

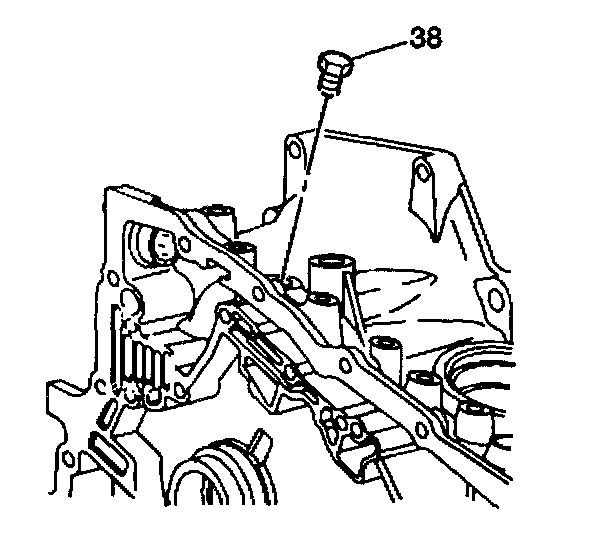

2. Remove the line the pressure pipe plug (38).

INSTALLATION PROCEDURE





1. Install the line pressure pipe plug (38).
^ Tighten the line pressure pipe plug (38) to 11 Nm (97 inch lbs.).

NOTICE: Refer to Service Precautions in Service Precautions.

2. Install the throttle body air inlet duct.
