Torque Converter Clutch Pulse Width Modulation Solenoid

REMOVAL PROCEDURE





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.
3. Remove the oil pump.

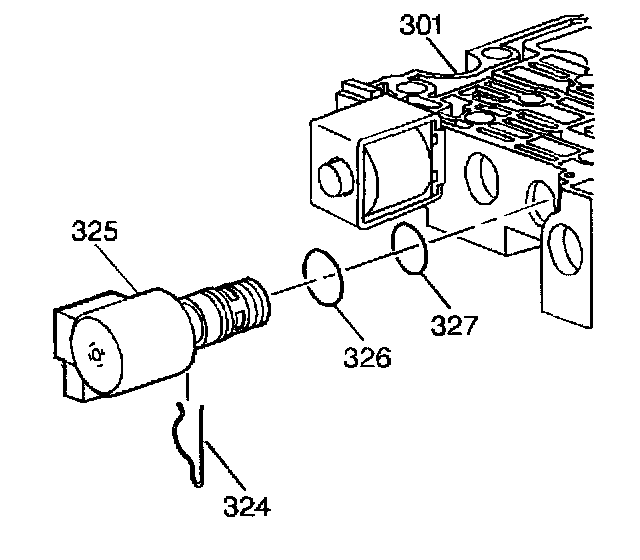

4. Remove the torque converter clutch PWM solenoid (325).

INSTALLATION PROCEDURE

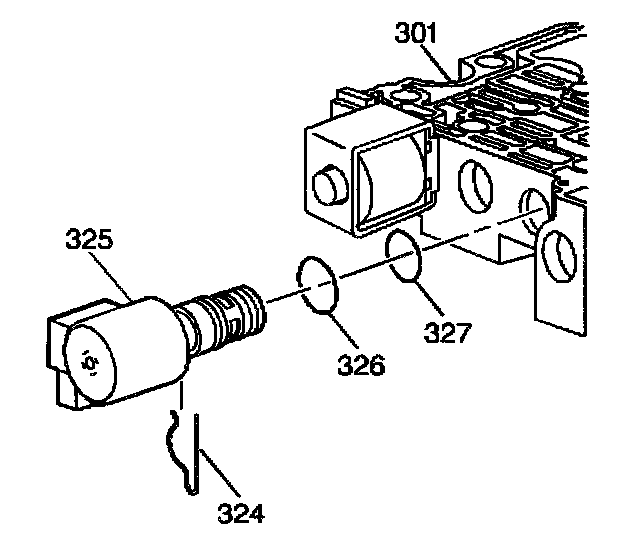

1. Install the torque converter clutch PWM solenoid (325).
2. Connect the transaxle wiring harness.
3. Install the oil pump.
4. Install the case side cover.
