On-Vehicle Service

Remove or Disconnect

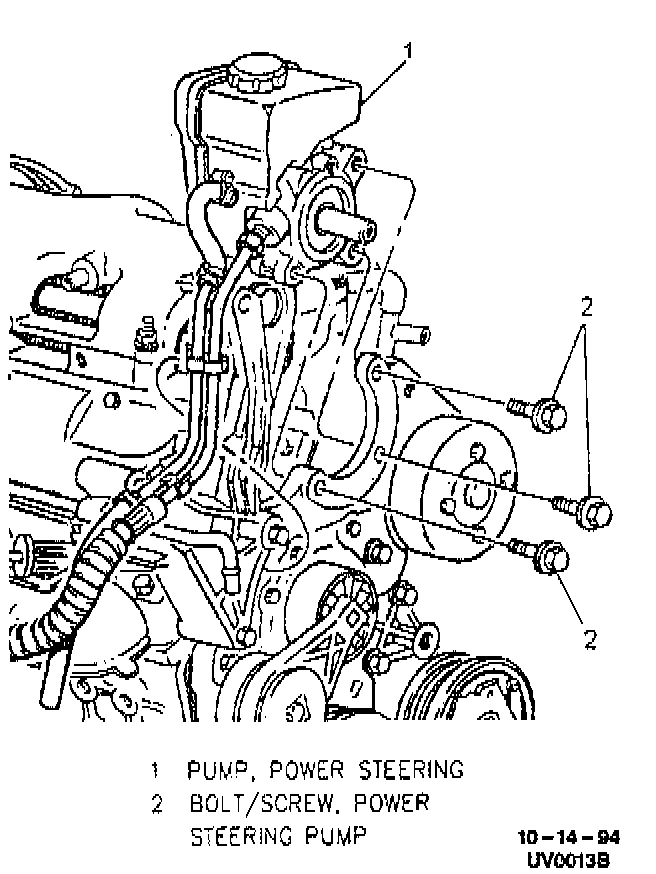

1. Drive belt at pump.
2. Inlet and outlet hose from pump.
3. Bolts/screws from pump.
4. Pump.

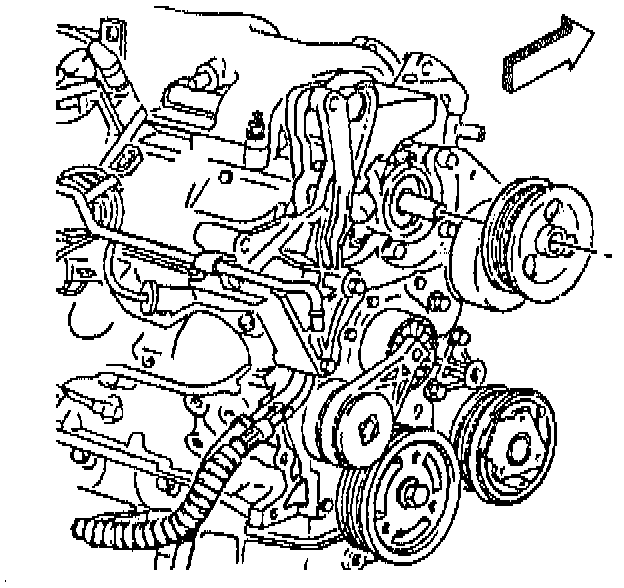

5. Power steering pump pulley from pump.
6. Reservoir from pump.
7. Transfer pulley as necessary.


Install or connect following:
1. Reservoir to pump.
2 Power steering pump pulley to pump.
3. Position pump to engine.
4. Bolts/screws to power steering pump.
^ Tighten bolts/screws to 34 Nm (25 ft. lbs.).
5. Inlet and outlet hose to pump.
6. Drive belt at pump.
7. Fill system.
8. Bleed power steering system.
^ Inspect for leaks.
