Full Bench

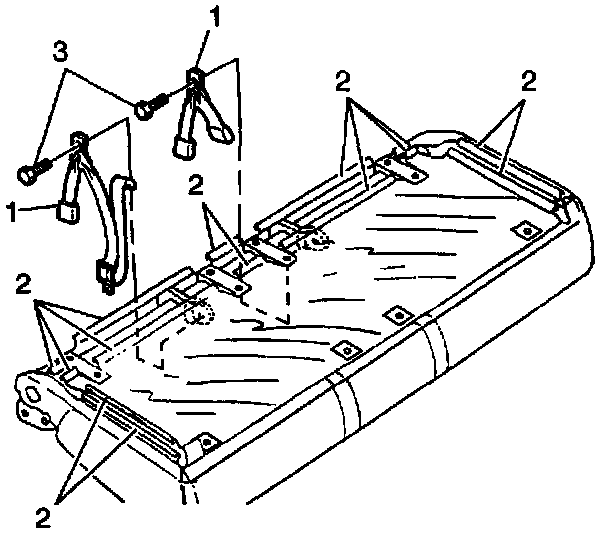

1. Install the center belts (1) to the seat.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts (3) securing the center belts to the seat cushion frame.
Tighten
Tighten the rear seat center belt bolts to 53 N.m (39 lb. ft).
3. Hook the J arrow retainer (2) to the bottom of the seat cushion cover.
4. Install the rear seat riser. Refer to Rear Seat Riser in Seats and Carpet.
5. Install the recliner trim cover. Refer to Recliner Covers in Seats and Carpet.
6. Install the rear seat. Refer to Rear Seats in Seats and Carpet.
