60/40 Split Bench

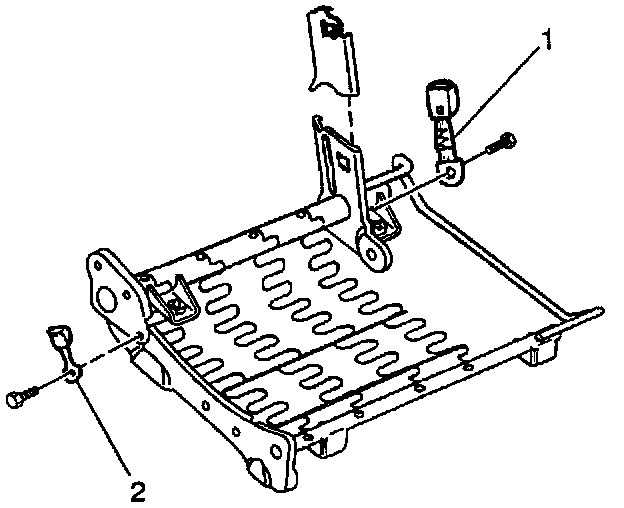

Description:

1. Install the bolt securing the mini-buckle (2) to the 60 percent seat cushion frame.
2. Install the buckle side belts (1) to the seat.

NOTICE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the mini-buckle bolt to 53 N.m (39 lb. ft).

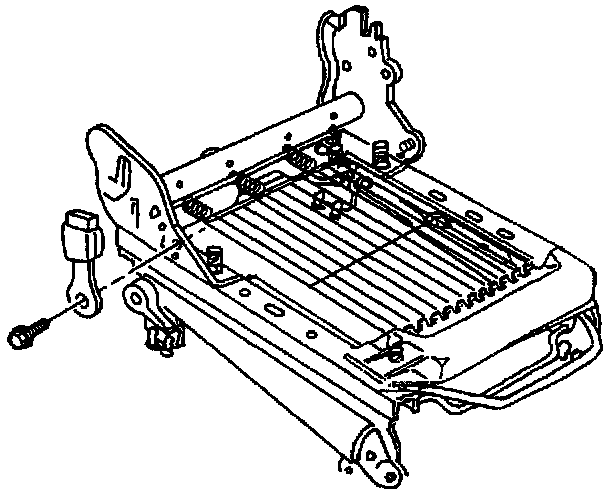

Description:

3. Install the bolts securing the buckle side belts (1) to the seat cushion frame.
Tighten
Tighten the rear seat buckle belt bolts to 53 N.m (39 lb. ft).
4. Hook the J and arrow retainer to the bottom of the seat cushion cover.
5. Install the rear seat riser. Refer to Rear Seat Riser in Seats and Carpet.
6. Install the recliner trim coven Refer to Recliner Covers in Seats and Carpet.
7. Install the rear seat. Refer to Rear Seats in Seats and Carpet.
