Installation Procedure

Description:

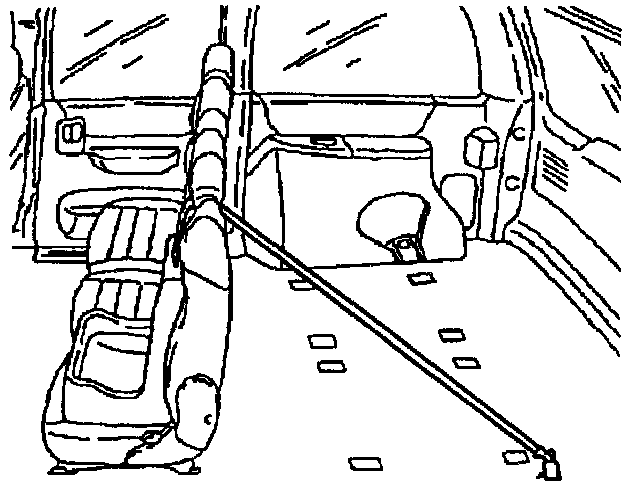

1. Route the tether strap underneath the second row seat head restraint if equipped.
2. Remove the carpet that covers the third row outboard anchor hole in the floor. The anchor hole location is 45 mm (1.77 in) inboard of the third row quarter trim panel. The anchor hole location is 440 to 600 mm (17.32 to 23.62 in) forward of the rear door.

NOTICE: Refer to Fastener Notice in Service Precautions.

Description:

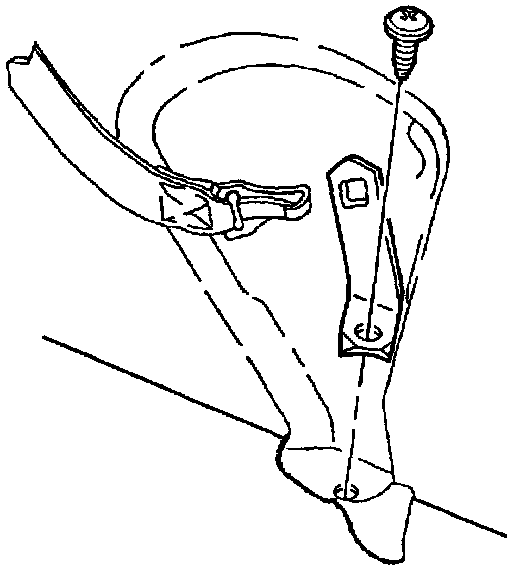

3. Install the anchor bracket to the floor. Secure the anchor bracket with a bolt.
Tighten
Tighten the child seat tether strap anchor bracket bolt to 43 N.m (32 lb. ft).
4. Clip the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the spring clip is attached to the anchor plate.
