Installation Procedure

Description:

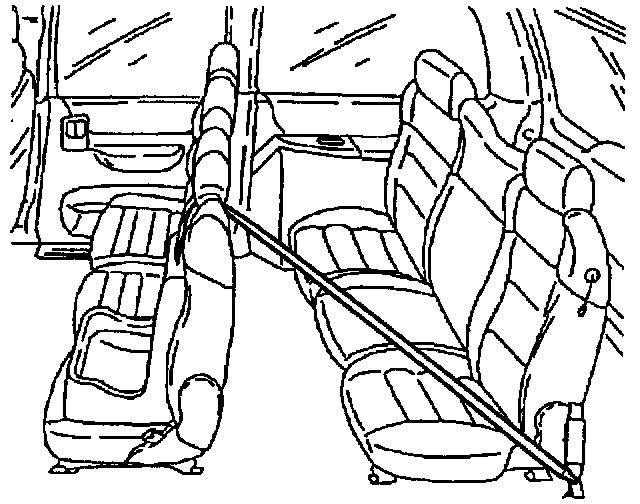

1. Route the tether strap underneath the second row seat head restraint if equipped.

Description:

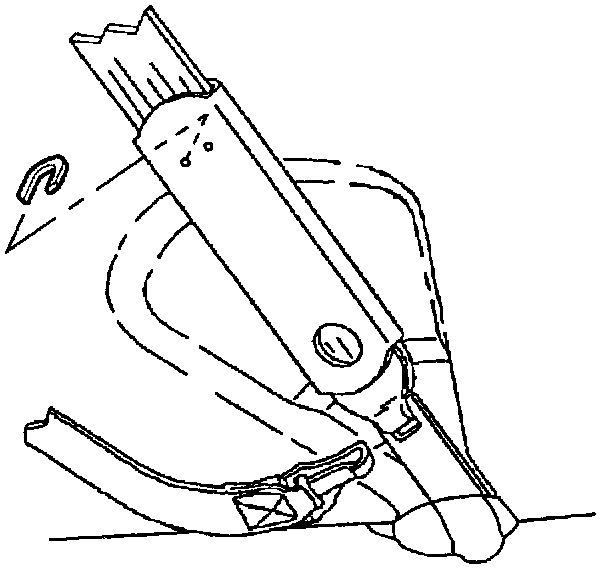

2. Remove the staple from the seat belt anchor sleeve. Then discard the staple.
3. Slide the sleeve to the upward position in order to expose the seat belt anchor.
4. Clip the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the tether strap spring clip is attached to the anchor plate.
